Web Protocols

Last Updated : 13 Jun, 2025

Protocol: A protocol is a set of predefined rules that handle how data is exchanged between computers over the Internet. It ensures that devices can communicate in a structured, reliable, and secure manner. In essence, protocols dictate how data is sent, received, formatted, and processed.

While there are over 200 recognized protocols in use today across various domains like networking, security, and applications, more than 90% of internet communication relies on a few key protocols—HTTP, HTTPS, TCP/IP, FTP, and DNS—commonly known as web protocols. Without these protocols, devices wouldn't be able to understand each other, rendering online communication impossible.

For Example, when you visit a website like www.geeksforgeeks.org, several protocols work together to ensure you get the content you want:
DNS Protocol translates the domain name into an IP address.
TCP/IP Protocol manages the routing and delivery of data.
HTTP/HTTPS Protocol handles the actual exchange of webpage content.

Note: Before jumping into web protocols, it's important to first understand the layers of the TCP/IP Model and how these protocols are structured and work together to enable smooth and efficient data transmission across the internet.

How Web Protocols Operate Across the TCP/IP Model

Web protocols operate seamlessly across the TCP/IP model to enable efficient and reliable communication between devices on the internet. The TCP/IP model, which is a more practical and simplified version of the OSI model, consists of four layers: the Application Layer, Transport Layer, Network Layer, and Network Access Layer. Unlike the OSI model, which separates responsibilities into seven layers, TCP/IP combines several OSI layers into broader functional blocks.

For Example, the TCP/IP Application Layer handles the functions of the OSI's Application, Presentation, and Session layers.

When data is transmitted from a sender to a receiver, the process starts at the Application Layer, where protocols like HTTP, HTTPS, FTP, and DNS initiate and manage the communication. The data is then passed to the Transport Layer, which uses protocols such as TCP or UDP to segment the data into packets and ensure it reaches the destination reliably and in order. Next, the Network Layer assigns IP addresses and determines the best routing path using protocols like IP and ICMP. Finally, the Network Access Layer manages the physical transmission of data through hardware-specific means such as Ethernet or Wi-Fi, handling MAC addresses and converting data into signals that travel through the network medium.

On the receiving end, the same layered process happens in reverse. The data is received and interpreted from the physical medium up through the layers until it reaches the Application Layer for the user to interact with. This layered structure ensures a modular, scalable, and interoperable communication system where different protocols at different layers work together to complete the full data transmission process. The TCP/IP model is the foundation of internet communication, and understanding how web protocols operate within this model is essential for grasping how information flows securely and accurately between users, servers, and systems across the globe.

Note: Most web protocols are found in the Application and Transport layers.

How Web Protocols Work Behind Every Website

Web protocols function like different departments in a company, each specializing in specific tasks to ensure that data gets from point A to point B efficiently and securely. Whether you’re accessing a website, sending a file, or resolving a domain, each step relies on a specific protocol.

Here are the most common web protocols:

1. HTTP (Hyper Text Transfer Protocol)

HTTP Protocol is used to transfer hypertexts over the internet and it is defined by the www(world wide web) for information transfer. It’s the protocol that allows web browsers to request web pages from servers and display them to users.

However, HTTP is not secure, meaning data transmitted over HTTP can be intercepted by malicious actors. It is used to share text, images, and other multimedia files on the World Wide Web.

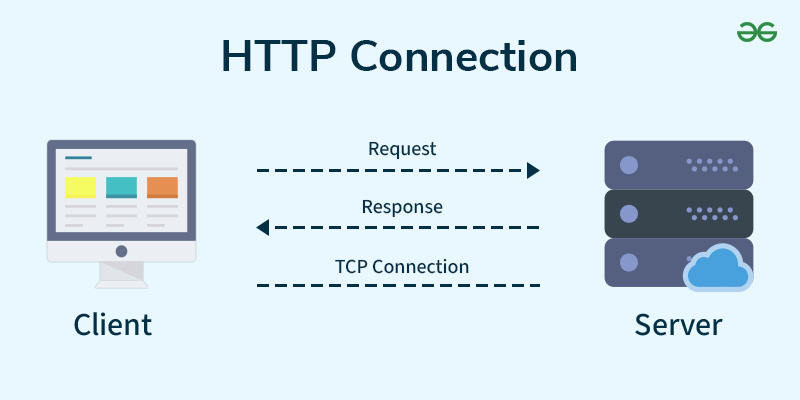

When a user enters a website URL, the client sends an HTTP request to the server asking for the webpage or specific data. The server then processes this request and sends back an HTTP response containing the required content. This entire exchange happens over a TCP (Transmission Control Protocol) connection, which ensures that the data is sent reliably and in the correct order. HTTP is the communication protocol that makes this client-server interaction possible, allowing users to access web content.

2. HTTPS

HTTPS (HyperText Transfer Protocol Secure) is the secure version of HTTP. It works the same way as HTTP by allowing your browser to request and receive web pages from a server, but with one important difference — it encrypts the data being exchanged. This means any information sent between your browser and the website (like passwords, credit card details, or personal data) is kept private and safe from hackers. HTTPS uses SSL/TLS encryption to protect the connection, making it the preferred and trusted protocol for secure websites, especially for online shopping, banking, or login pages.

The secure communication process in HTTPS involves the following key steps:

TCP Connection: First, a stable TCP connection is established between the client and the server to start communication.
Public Key: The server sends its public key to the client. This key is part of an SSL certificate and is used to safely exchange information without exposing it to attackers.
Session Key: The client then generates a session key and encrypts it using the server's public key. This ensures that only the server can decrypt and access the session key.
Data Encryption: Once the session key is exchanged, all data transferred between the client and server is encrypted. This keeps personal information, passwords, and other sensitive data safe from hackers.

3. TCP (Transmission Control Protocol)

TCP (Transmission Control Protocol)is a communication protocol that ensures reliable, ordered, and error-checked delivery of data between devices over a network. It breaks data into packets, sends them to the destination, and reassembles them in the correct order.

For Example : If you are sending large file to a friend. TCP divides file into small packets and send them over the internet. If some packets get lost along the way TCP reassembled them in the correct order. If any packets get lost or arrive out of order, TCP retransmits them to ensure data integrity.

TCP (Transmission Control Protocol) establishes a reliable connection between a client (like your computer) and a server using a method called the three-way handshake.

SYN (Synchronize): The client starts the process by sending a SYN message to the server, asking to start a connection.
SYN + ACK (Acknowledge): The server receives the SYN request and responds with a SYN-ACK message, which means it agrees to the connection and acknowledges the client’s request.
ACK (Acknowledge): The client replies with an ACK message, confirming the connection.

4. IP (Internet Protocol

TheInternet Protocol (IP) is the foundational communication protocol that enables devices to send and receive data across the internet and other networks. It acts like a digital postal system, assigning unique addresses (IP addresses) to devices and ensuring data packets are correctly routed from source to destination.

The sender device (IP: 192.16.00.12) initiates communication by encapsulating data into a packet, including both its source IP address and the destination IP address.
The packet is then forwarded to the internet, which serves as the medium responsible for routing the packet based on the destination IP (192.00.00.75).
Routing protocols and network infrastructure interpret the destination IP and determine the most efficient path for delivering the packet.
Upon reaching the destination, the recipient device (IP: 192.00.00.75) identifies the packet as intended for it and proceeds to process the received data.
This process ensures accurate and efficient data delivery between networked devices, forming the core functionality of the Internet Protocol.

5. DNS (Domain Name System)

DNS (Domain Name System) is like the internet’s phonebook. It translates easy-to-remember domain names like www.geeksforgeeks.org into IP addresses like 142.250.77.206, which computers use to identify each other on the network. Without DNS, we’d have to remember long strings of numbers to visit websites. It plays a key role in connecting users to websites quickly and accurately, making browsing the web smooth and user-friendly.

To translate a domain name like geeksforgeeks.org into its corresponding IP address. When a user types a website URL into their browser, the system first checks the local cache, OS cache, or router cache to see if the IP address is already stored. If not found, it moves to the host files, and if still unresolved, the request is sent to a DNS resolver. The resolver contacts a root server, which directs it to the TLD server for geeksforgeeks.org . The TLD server then points to the authoritative nameserver for geeksforgeeks.org, which finally returns the IP address. The resolver provides this IP to the user's system, which then contacts the real server to load the website. This entire process happens in milliseconds, ensuring a smooth browsing experience.

6. FTP (File Transfer Protocol

FTP (File Transfer Protocol)is a standard network protocol used to transfer files between a client and a server over the internet or a local network. It allows users to upload, download, delete, or manage files on a remote server. FTP is commonly used for website management, file sharing, and data backup. However, it does not encrypt data, making it less secure compared to modern alternatives like SFTP or FTPS.

FTP uses two separate connections: the Control Channel and the Data Channel. The Control Channel is used to send commands (like login requests or file operation instructions), while the Data Channel handles the actual transfer of files (uploading or downloading). This separation allows efficient and organized file management over a network. A common use case is uploading website files to a server or downloading backups from it.

Working of Web Protocols

When you type a website address like www.geeksforgeeks.org in the web browser:

First, DNS translates the domain into an IP address.
A TCP connection is established between your device and the server.
An HTTP or HTTPS request is made to the server for the website’s content.
If the site is secure, data is encrypted via SSL/TLS.
The server responds with the requested content, which is displayed in your browser.

Conclusion

Web protocols are the foundation of how the internet works. They define rules and standards that allow devices, browsers, and servers to communicate effectively. Without them, websites wouldn’t load, data wouldn’t reach the right destination, and secure transactions would be impossible. For developers, understanding these protocols is crucial because they influence how websites are built, how data is transferred, and how user security is handled. Whether you're creating login systems, fetching data from a server, or ensuring fast page loads, web protocols ensure your application works smoothly, securely, and efficiently. They’re the invisible engines that power everything online — from browsing and streaming to shopping and file sharing.
