Understanding Decision Boundaries in K-Nearest Neighbors (KNN)

Last Updated : 15 May, 2025

A decision boundary is a line or surface that divides different groups in a classification task. It shows which areas belong to which class based on what the model decides. K-Nearest Neighbors (KNN) algorithm operates on the principle that similar data points exist in close proximity within a feature space. The shape of this boundary depends on:

The value of K (how many neighbors are considered).
How the data points are spread out in space.

For example given a dataset with two classes the decision boundary can be visualized as the line or curve dividing the two regions where each class is predicted. For a 1-nearest neighbor (1-NN) classifier the decision boundary can be visualized using a Voronoi diagram.

Using Voronoi Diagrams to Visualize

A Voronoi diagram splits space into regions based on which training point is closest.
Each region called a Voronoi cell contains all the points closest to one specific training point.
The lines between regions are where points are equally close to two or more seeds. These are the decision boundaries for 1-Nearest Neighbor.
If we label the training points by class the Voronoi diagram shows how KNN assigns a new point based on which region it falls into.
The boundary line between two points p_i \quad and \quad p_j is the perpendicular bisector of the line joining them — meaning it’s a line that cuts the segment between them exactly in half at a right angle.

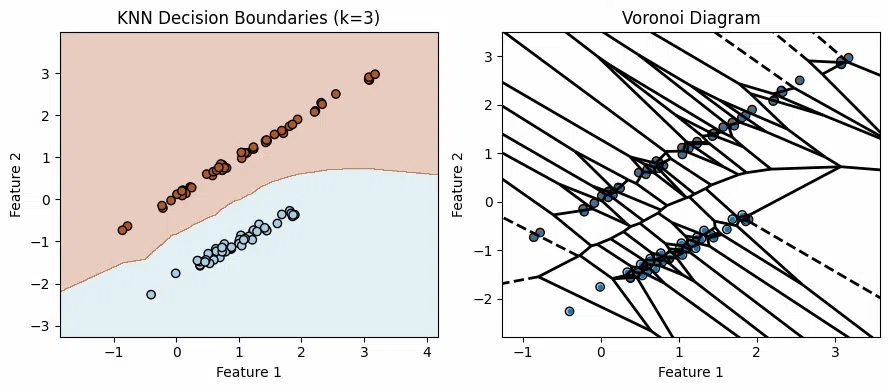

knn-decision-boundafries — Formation of Decision Boundaries

Relationship Between KNN Decision Boundaries and Voronoi Diagrams

In two-dimensional space the decision boundaries of KNN can be visualized as Voronoi diagrams. Here’s how:

KNN Boundaries: The decision boundary for KNN is determined by regions where the classification changes based on the nearest neighbors. K approaches infinity, these boundaries approach the Voronoi diagram boundaries.
Voronoi Diagram as a Special Case: When k = 1 KNN’s decision boundaries directly correspond to the Voronoi diagram of the training points. Each region in the Voronoi diagram represents the area where the nearest training point is closest.

How KNN Defines Decision Boundaries

In KNN, decision boundaries are influenced by the choice of k and the distance metric used:

1. Impact of 'K' on Decision Boundaries: The number of neighbors (k) affects the shape and smoothness of the decision boundary.

Small k: When k is small the decision boundary can become very complex, closely following the training data. This can lead to overfitting.
Large k: When k is large the decision boundary smooths out and becomes less sensitive to individual data points, potentially leading to underfitting.

2. Distance Metric: The decision boundary is also affected by the distance metric used like Euclidean, Manhattan. Different metrics can lead to different boundary shapes.

Euclidean Distance: Commonly used leading to circular or elliptical decision boundaries in two-dimensional space.
Manhattan Distance: Results in axis-aligned decision boundaries.

Decision Boundaries for Binary Classification with Varying k

Consider a binary classification problem with two features where the goal is to visualize how KNN decision boundary changes as k varies. This example uses synthetic data to illustrate the impact of different k values on the decision boundary.

For a two-dimensional dataset decision boundary can be plotted by:

Creating a Grid: Generate a grid of points covering the feature space.
Classifying Grid Points: Use the KNN algorithm to classify each point in the grid based on its neighbors.
Plotting: Color the grid points according to their class labels and draw the boundaries where the class changes.

Python

import numpy as np import matplotlib.pyplot as plt from sklearn.datasets import make_classification from sklearn.neighbors import KNeighborsClassifier   X, y = make_classification(n_samples=200, n_features=2, n_informative=2, n_redundant=0, n_clusters_per_class=1, random_state=42)  x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1 y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1 xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.01), np.arange(y_min, y_max, 0.01))  fig, axs = plt.subplots(2, 2, figsize=(12, 10)) k_values = [1, 3, 5, 10]  for ax, k in zip(axs.flat, k_values):      knn = KNeighborsClassifier(n_neighbors=k)     knn.fit(X, y)          Z = knn.predict(np.c_[xx.ravel(), yy.ravel()])     Z = Z.reshape(xx.shape)      ax.contourf(xx, yy, Z, alpha=0.3, cmap=plt.cm.Paired)     ax.scatter(X[:, 0], X[:, 1], c=y, edgecolor='k',                cmap=plt.cm.Paired, marker='o')     ax.set_title(f'KNN Decision Boundaries (k={k})')     ax.set_xlabel('Feature 1')     ax.set_ylabel('Feature 2')  plt.tight_layout() plt.show()

Output:

casestudy1 — Binary Classification with Varying k

For small k the boundary is highly sensitive to local variations and can be irregular.
For larger k the boundary smooths out, reflecting a more generalized view of the data distribution.

Factors That Affect KNN Decision Boundaries

Feature Scaling: KNN is sensitive to the scale of data. Features with larger ranges can dominate distance calculations, affecting the boundary shape.
Noise in Data: Outliers and noisy data points can shift or distort decision boundaries, leading to incorrect classifications.
Data Distribution: How data points are spread across the feature space influences how KNN separates classes.
Boundary Shape: A clear and accurate boundary improves classification accuracy, while a messy or unclear boundary can lead to errors.

Understanding these boundaries helps in optimizing KNN's performance for specific datasets.
