Spring ORM Example using Hibernate

Last Updated : 26 Mar, 2025

Spring ORM is a module of the Java Spring framework used to implement the ORM(Object Relational Mapping) technique. It can be integrated with various mapping and persistence frameworks like Hibernate, Oracle Toplink, iBatis, etc. for database access and manipulation. This article covers an example of the integration of the Spring ORM module with Hibernate framework.

Prerequisites:

Java Programming
Spring Framework (Core, Context, and JDBC modules)
Hibernate or any other ORM tool
Maven for dependency management
A relational database like MYSQL, PostgreSQL or H2

Key Components of Spring ORM

Spring ORM provides various classes and interfaces for integrating Spring applications with the Hibernate framework. Some useful classes in Spring ORM are:

LocalSessionFactoryBean: Configures Hibernate's SessionFactory.
HibernateTransactionManager: Manages transactions for Hibernate.
SessionFactory: Used to create Hibernate Session instances for database operations.

Note: HibernateTemplate, which was widely used in older versions, is now deprecated. Modern applications use SessionFactory directly with @Transactional annotations.

Step-by-Step Implementation

Step 1: Add Dependencies

We will use Maven for dependency management. We need to add the following dependencies to the pom.xml file.

Key Dependencies with Versions:

Dependency	Version
Spring ORM (spring-orm)	6.1.0
Spring Context (spring-context)	6.1.0
Spring JDBC (spring-jdbc)	6.1.0
Hibernate Core (hibernate-core)	6.4.0
MySQL Connector/J (mysql-connector-j)	8.1.0
Jakarta Persistence API (jakarta.persistence-api)	3.1.0
Spring Transaction Management (spring-tx)	6.1.0
JUnit 5 (junit-jupiter-api, junit-jupiter-engine)	5.10.0

pom.xml:

XML

<project xmlns="http://maven.apache.org/POM/4.0.0"          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">     <modelVersion>4.0.0</modelVersion>      <groupId>com.example</groupId>     <artifactId>spring-orm-hibernate-example</artifactId>     <version>1.0-SNAPSHOT</version>      <properties>         <java.version>17</java.version>      </properties>      <dependencies>         <!-- Spring ORM -->         <dependency>             <groupId>org.springframework</groupId>             <artifactId>spring-orm</artifactId>             <version>6.1.0</version>          </dependency>          <!-- Spring Context -->         <dependency>             <groupId>org.springframework</groupId>             <artifactId>spring-context</artifactId>             <version>6.1.0</version>          </dependency>          <!-- Spring JDBC -->         <dependency>             <groupId>org.springframework</groupId>             <artifactId>spring-jdbc</artifactId>             <version>6.1.0</version>          </dependency>          <!-- Hibernate Core -->         <dependency>             <groupId>org.hibernate</groupId>             <artifactId>hibernate-core</artifactId>             <version>6.4.0</version>          </dependency>          <!-- MySQL Connector/J -->         <dependency>             <groupId>com.mysql</groupId>             <artifactId>mysql-connector-j</artifactId>             <version>8.1.0</version>          </dependency>          <!-- Jakarta Persistence API (JPA) -->         <dependency>             <groupId>jakarta.persistence</groupId>             <artifactId>jakarta.persistence-api</artifactId>             <version>3.1.0</version>          </dependency>          <!-- Spring Transaction Management -->         <dependency>             <groupId>org.springframework</groupId>             <artifactId>spring-tx</artifactId>             <version>6.1.0</version>          </dependency>          <!-- Testing Dependencies -->         <dependency>             <groupId>org.junit.jupiter</groupId>             <artifactId>junit-jupiter-api</artifactId>             <version>5.10.0</version>              <scope>test</scope>         </dependency>         <dependency>             <groupId>org.junit.jupiter</groupId>             <artifactId>junit-jupiter-engine</artifactId>             <version>5.10.0</version>              <scope>test</scope>         </dependency>     </dependencies>      <build>         <plugins>             <!-- Compiler Plugin for Java 17 -->             <plugin>                 <groupId>org.apache.maven.plugins</groupId>                 <artifactId>maven-compiler-plugin</artifactId>                 <version>3.11.0</version>                 <configuration>                     <source>${java.version}</source>                     <target>${java.version}</target>                 </configuration>             </plugin>              <!-- Maven Surefire Plugin for Testing -->             <plugin>                 <groupId>org.apache.maven.plugins</groupId>                 <artifactId>maven-surefire-plugin</artifactId>                 <version>3.2.0</version>                  <configuration>                     <forkCount>1</forkCount>                     <reuseForks>false</reuseForks>                 </configuration>             </plugin>         </plugins>     </build> </project>

Note:
The project is configured for Java 17 version. if you are using a different version, update the <java.version> property.
If you are using Jakarta EE 9 or latest, make sure all javax.persistence imports are replaced with jakarta.persistence.
The maven-surefire-plugin is configured to run Junit 5 tests.

Step 2: Create Entity Class

Now, we are going to define an entity class that maps to a database table. For example let's create a Student entity.

Student.java:

Java

package com.example.model;  import jakarta.persistence.*;  @Entity @Table(name = "students") public class Student {      @Id     @GeneratedValue(strategy = GenerationType.IDENTITY)     private Long id;      @Column(name = "name", nullable = false)     private String name;      @Column(name = "email", unique = true)     private String email;      // Getters and Setters     public Long getId() {         return id;     }      public void setId(Long id) {         this.id = id;     }      public String getName() {         return name;     }      public void setName(String name) {         this.name = name;     }      public String getEmail() {         return email;     }      public void setEmail(String email) {         this.email = email;     } }

Note: If you are using Jakarta EE 9 or later. Use jakarta.persistence instead of javax.persistence.

Step 3: Configure Hibernate and Spring

Use Java-based configuration to set up Hibernate and Spring. Create a configuration class.

Java

package com.example.config;  import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.orm.hibernate5.LocalSessionFactoryBean; import org.springframework.orm.hibernate5.HibernateTransactionManager; import org.springframework.transaction.annotation.EnableTransactionManagement; import javax.sql.DataSource; import java.util.Properties;  @Configuration @EnableTransactionManagement public class HibernateConfig {      @Bean     public LocalSessionFactoryBean sessionFactory() {         LocalSessionFactoryBean sessionFactory = new LocalSessionFactoryBean();         sessionFactory.setDataSource(dataSource());         sessionFactory.setPackagesToScan("com.example.model");         sessionFactory.setHibernateProperties(hibernateProperties());         return sessionFactory;     }      @Bean     public DataSource dataSource() {         org.springframework.jdbc.datasource.DriverManagerDataSource dataSource = new org.springframework.jdbc.datasource.DriverManagerDataSource();         dataSource.setDriverClassName("com.mysql.cj.jdbc.Driver");         dataSource.setUrl("jdbc:mysql://localhost:3306/mydb");         dataSource.setUsername("root");         dataSource.setPassword("password");         return dataSource;     }      private Properties hibernateProperties() {         Properties properties = new Properties();         properties.put("hibernate.dialect", "org.hibernate.dialect.MySQL8Dialect");         properties.put("hibernate.show_sql", "true");         properties.put("hibernate.hbm2ddl.auto", "update");         return properties;     }      @Bean     public HibernateTransactionManager transactionManager() {         HibernateTransactionManager txManager = new HibernateTransactionManager();         txManager.setSessionFactory(sessionFactory().getObject());         return txManager;     } }

Step 4: Create DAO Interface and Implementation

Define a DAO (Data Access Object) interface and its implementation

DAO Interface:

Java

package com.example.dao;  import com.example.model.Student; import java.util.List;  public interface StudentDao {     void save(Student student);     Student findById(Long id);     List<Student> findAll();     void update(Student student);     void delete(Long id); }

DAO Implementation:

Java

package com.example.dao;  import com.example.model.Student; import org.hibernate.Session; import org.hibernate.SessionFactory; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Repository; import org.springframework.transaction.annotation.Transactional;  import java.util.List;  @Repository @Transactional public class StudentDaoImpl implements StudentDao {      @Autowired     private SessionFactory sessionFactory;      @Override     public void save(Student student) {         Session session = sessionFactory.getCurrentSession();         session.save(student);     }      @Override     public Student findById(Long id) {         Session session = sessionFactory.getCurrentSession();         return session.get(Student.class, id);     }      @Override     public List<Student> findAll() {         Session session = sessionFactory.getCurrentSession();         return session.createQuery("FROM Student", Student.class).getResultList();     }      @Override     public void update(Student student) {         Session session = sessionFactory.getCurrentSession();         session.update(student);     }      @Override     public void delete(Long id) {         Session session = sessionFactory.getCurrentSession();         Student student = session.get(Student.class, id);         if (student != null) {             session.delete(student);         }     } }

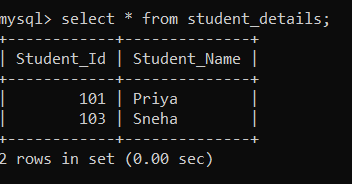

Step 5: Test the Application

Create a main class to test the CRUD operations

Java

package com.example;  import com.example.config.HibernateConfig; import com.example.dao.StudentDao; import com.example.model.Student; import org.springframework.context.annotation.AnnotationConfigApplicationContext;  import java.util.List;  public class MainApp {     public static void main(String[] args) {         // Initialize Spring context         AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(HibernateConfig.class);         StudentDao studentDao = context.getBean(StudentDao.class);          // Insert a new student with ID 101 and name "Nisha"         Student student1 = new Student();          // Manually set ID for demonstration         student1.setId(101L);         student1.setName("Nisha");         studentDao.save(student1);         System.out.println("Student inserted: " + student1);          // Update the student's name to "Priya"         student1.setName("Priya");         studentDao.update(student1);         System.out.println("Student updated: " + student1);          // Retrieve the student with ID 101         Student retrievedStudent = studentDao.findById(101L);         System.out.println("Retrieved Student: " + retrievedStudent);          // Insert additional students for demonstration         Student student2 = new Student();          // Manually set ID for demonstration         student2.setId(102L);         student2.setName("Danish");         studentDao.save(student2);          Student student3 = new Student();         // Manually set ID for demonstration         student3.setId(103L);          student3.setName("Sneha");         studentDao.save(student3);          // Retrieve all students before deletion         System.out.println("All Students Before Deletion:");         List<Student> studentsBeforeDeletion = studentDao.findAll();         studentsBeforeDeletion.forEach(System.out::println);          // Delete the student with ID 102         studentDao.delete(102L);         System.out.println("Student with ID 102 deleted.");          // Retrieve all students after deletion         System.out.println("All Students After Deletion:");         List<Student> studentsAfterDeletion = studentDao.findAll();         studentsAfterDeletion.forEach(System.out::println);          // Close the Spring context         context.close();     } }
