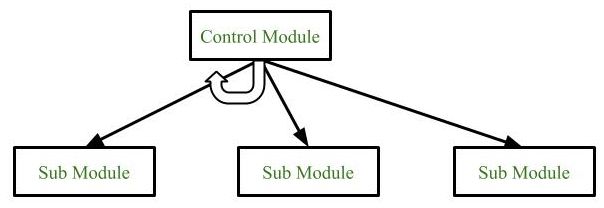

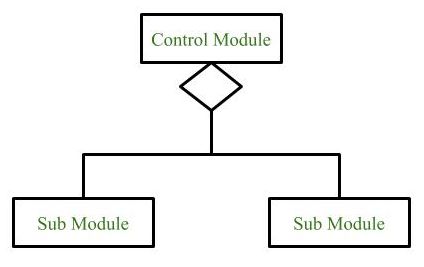

Structure Charts - Software Engineering Last Updated : 02 Jan, 2024 Comments Improve Suggest changes Like Article Like Report Structure Chart represents the hierarchical structure of modules. It breaks down the entire system into the lowest functional modules and describes the functions and sub-functions of each module of a system in greater detail. This article focuses on discussing Structure Charts in detail. What is a Structure Chart?Structure Chart partitions the system into black boxes (functionality of the system is known to the users, but inner details are unknown). Inputs are given to the black boxes and appropriate outputs are generated. Modules at the top level are called modules at low level. Components are read from top to bottom and left to right. When a module calls another, it views the called module as a black box, passing the required parameters and receiving results.Symbols in Structured Chart1. ModuleIt represents the process or task of the system. It is of three types: Control Module: A control module branches to more than one submodule.Sub Module: Sub Module is a module which is the part (Child) of another module.Library Module: Library Module are reusable and invokable from any module.2. Conditional Call It represents that control module can select any of the sub module on the basis of some condition. 3. Loop (Repetitive call of module) It represents the repetitive execution of module by the sub module. A curved arrow represents a loop in the module. All the submodules cover by the loop repeat execution of module. 4. Data Flow It represents the flow of data between the modules. It is represented by a directed arrow with an empty circle at the end. 5. Control Flow It represents the flow of control between the modules. It is represented by a directed arrow with a filled circle at the end. 6. Physical StorageIt is that where all the information are to be stored. Example Structure chart for an Email server Types of Structure ChartTransform Centered Structure: These type of structure chart are designed for the systems that receives an input which is transformed by a sequence of operations being carried out by one module.Transaction Centered Structure: These structure describes a system that processes a number of different types of transaction. Comment More infoAdvertise with us Next Article Structure Charts - Software Engineering A AmanAgarwal6 Follow Improve Article Tags : Software Engineering Similar Reads Work Breakdown Structure - Software Engineering A Work Breakdown Structure includes dividing a large and complex project into simpler, manageable, and independent tasks. The root of this tree (structure) is labeled by the Project name itself. For constructing a work breakdown structure, each node is recursively decomposed into smaller sub-activit 2 min read Software Characteristics - Software Engineering Software is defined as a collection of computer programs, procedures, rules, and data. Software Characteristics are classified into six major components. Software engineering is the process of designing, developing, testing, and maintaining software. In this article, we will look into the characteri 6 min read Software Engineering Tutorial Software Engineering is a subdomain of Engineering in which you learn to develop, design, test, and maintain software using a systematic and structured approach. Software is a collection of programs. And that programs are developed by software engineers In this Software Engineering Tutorial, you wil 7 min read System Design Strategy - Software Engineering A good system design is to organize the program modules in such a way that they are easy to develop and change. Structured design techniques help developers to deal with the size and complexity of programs. Analysts create instructions for the developers about how code should be written and how piec 7 min read Classification of Software - Software Engineering Software Engineering is the process of developing a software product in a well-defined systematic approach software engineering is the process of analyzing user needs and then designing, constructing, and testing end-user applications that will satisfy these needs through the use of software program 8 min read Like
