3D Surface plotting in Python using Matplotlib

Last Updated : 28 Apr, 2025

A Surface Plot is a representation of three-dimensional dataset. It describes a functional relationship between two independent variables X and Z and a designated dependent variable Y, rather than showing the individual data points. It is a companion plot of the contour plot. It is similar to the wireframe plot, but each face of the wireframe is a filled polygon. This helps to create the topology of the surface which is being visualized.

Creating 3D surface Plot

The axes3d present in Matplotlib's mpl_toolkits.mplot3d toolkit provides the necessary functions used to create 3D surface plots.Surface plots are created by using ax.plot_surface() function.
Syntax:

ax.plot_surface(X, Y, Z)

where X and Y are 2D array of points of x and y while Z is 2D array of heights.Some more attributes of ax.plot_surface() function are listed below:

Attribute	Description
X, Y, Z	2D arrays of data values
cstride	array of column stride(step size)
rstride	array of row stride(step size)
ccount	number of columns to be used, default is 50
rcount	number of row to be used, default is 50
color	color of the surface
cmap	colormap for the surface
norm	instance to normalize values of color map
vmin	minimum value of map
vmax	maximum value of map
facecolors	face color of individual surface
shade	shades the face color

Example: Let's create a 3D surface by using the above function

Python3

# Import libraries from mpl_toolkits import mplot3d import numpy as np import matplotlib.pyplot as plt   # Creating dataset x = np.outer(np.linspace(-3, 3, 32), np.ones(32)) y = x.copy().T # transpose z = (np.sin(x **2) + np.cos(y **2) )  # Creating figure fig = plt.figure(figsize =(14, 9)) ax = plt.axes(projection ='3d')  # Creating plot ax.plot_surface(x, y, z)  # show plot plt.show()

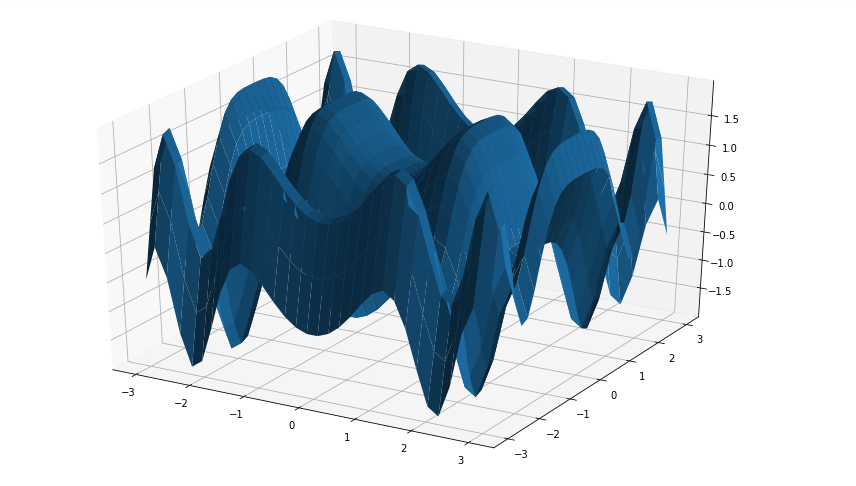

Output:

Gradient surface Plot

Gradient surface plot is a combination of 3D surface plot with a 2D contour plot. In this plot the 3D surface is colored like 2D contour plot. The parts which are high on the surface contains different color than the parts which are low at the surface.
Syntax:

surf = ax.plot_surface(X, Y, Z, cmap=, linewidth=0, antialiased=False)

The attribute cmap= sets the color of the surface. A color bar can also be added by calling fig.colorbar. The code below create a gradient surface plot:
Example:

Python3

# Import libraries from mpl_toolkits import mplot3d import numpy as np import matplotlib.pyplot as plt  # Creating dataset x = np.outer(np.linspace(-3, 3, 32), np.ones(32)) y = x.copy().T # transpose z = (np.sin(x **2) + np.cos(y **2) )  # Creating figure fig = plt.figure(figsize =(14, 9)) ax = plt.axes(projection ='3d')  # Creating color map my_cmap = plt.get_cmap('hot')  # Creating plot surf = ax.plot_surface(x, y, z,                        cmap = my_cmap,                        edgecolor ='none')  fig.colorbar(surf, ax = ax,              shrink = 0.5, aspect = 5)  ax.set_title('Surface plot')  # show plot plt.show()

Output:

3D surface Plot having 2D contour plot projections

3D surface plots plotted with Matplotlib can be projected on 2D surfaces. The code below creates a 3D plots and visualizes its projection on 2D contour plot:
Example:

Python3

# Import libraries from mpl_toolkits import mplot3d import numpy as np import matplotlib.pyplot as plt  # Creating dataset x = np.outer(np.linspace(-3, 3, 32), np.ones(32)) y = x.copy().T # transpose z = (np.sin(x **2) + np.cos(y **2) )  # Creating figure fig = plt.figure(figsize =(14, 9)) ax = plt.axes(projection ='3d')  # Creating color map my_cmap = plt.get_cmap('hot')  # Creating plot surf = ax.plot_surface(x, y, z,                         rstride = 8,                        cstride = 8,                        alpha = 0.8,                        cmap = my_cmap) cset = ax.contourf(x, y, z,                    zdir ='z',                    offset = np.min(z),                    cmap = my_cmap) cset = ax.contourf(x, y, z,                    zdir ='x',                    offset =-5,                    cmap = my_cmap) cset = ax.contourf(x, y, z,                     zdir ='y',                    offset = 5,                    cmap = my_cmap) fig.colorbar(surf, ax = ax,               shrink = 0.5,              aspect = 5)  # Adding labels ax.set_xlabel('X-axis') ax.set_xlim(-5, 5) ax.set_ylabel('Y-axis') ax.set_ylim(-5, 5) ax.set_zlabel('Z-axis') ax.set_zlim(np.min(z), np.max(z)) ax.set_title('3D surface having 2D contour plot projections')  # show plot plt.show()

Output:
