A PNP transistor is a type of bipolar junction transistor that consists of three layers of semiconductor material. It has a N-type layer sandwiched between the two P-type layers. PNP transistors are widely used in electronic circuits for amplification and signal processing.
PNP TransistorWhat Is a Transistor ?
The transistor is a semiconductor device that can be used as an amplifier a switch or for signal modulation. It consists of three layers of semiconductor material and can be classified into the two main types: NPN and PNP transistors.
Types of Transistor
The Transistors are primarily categorized into two types:
- Bipolar Junction Transistors (BJT): A Bipolar Junction Transistor (BJT) is a three-terminal semiconductor device used for signal amplification and switching. Based on the arrangement of the semiconductor layers and the direction of current flow, BJTs are classified as NPN (Negative-Positive-Negative) or PNP (Positive-Negative-Positive).
- Field Effect Transistors (FET): A Field-Effect Transistor (FET) is a type of semiconductor device that controls the flow of electrical current in electronic circuits. FETs work by modulating the electrical field within a semiconductor, allowing them to act as voltage-controlled switches or amplifiers.
Bipolar Junction Transistors (BJT)
Bipolar Junction Transistors are of Two Types:
Bipolar Junction Transistors in which include NPN and PNP transistors are further classified based on their applications and characteristics:
- NPN Transistor: The NPN transistor is commonly used for the amplification and switching in electronic circuits. It is named after the arrangement of its layers: N-type collector, P-type base, and N-type emitter.
- PNP Transistor: The PNP transistor is also used for the amplification and switching but with the opposite current flow compared to NPN.

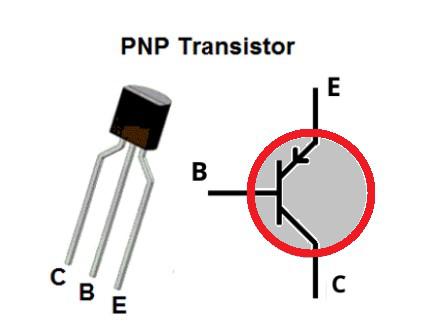

PNP Transistor Representation
PNP Transistor
In this symbol:
- E represents the Emitter.
- B represents the Base.
- C represents the Collector.
The arrow on the emitter indicates the direction of the conventional current flow in which is from the emitter to base in a PNP transistor when it is in an active state.
1. Collector Current (IC)
The collector current (IC) in the PNP transistor can be calculated using the following formula:
IC = β × IB
Where:
- IC is the collector current .
- β (beta) is the common-base current gain or transistor current gain in which represents the amplification factor of transistor.
- IB is the base current.
2. Base Current (IB)
The base current (IB) can be calculated using following formula:
IB = (IC / β)
Where:
- IB is the base current.
- IC is the collector current.
- β (beta) is common-base current gain or transistor current gain.
3. Emitter Current (IE)
The emitter current (IE) can be calculated using following formula:
IE = IC + IB
Where:
- IE is the emitter current.
- IC is the collector current.
- IB is the base current.
4. Collector-Emitter Voltage (VCE)
The collector-emitter voltage (VCE) can be determined using following formula:
VCE = VCC - IC × RC
Where:
- VCE is the collector-emitter voltage.
- VCC is the collector supply voltage.
- IC is the collector current.
- RC is the collector resistor.
5. Transistor Current Gain (β)
The common-base current gain or transistor current gain (β) is a key parameter of PNP transistor. It represents the ratio of the collector current to base current:
β = IC / IB
Where:
- β (beta) is the common-base current gain or transistor current gain.
- IC is the collector current.
- IB is the base current.
Understanding the Reason for Evolution
The development of PNP transistors was driven by a need for the complementary counterpart to NPN transistors. Having both PNP and NPN transistors allowed for creation of complementary symmetry amplifiers and digital logic circuits.
Effects
- Amplification: The PNP transistors can amplify weak input signals when used in common-emitter configuration.
- Switching: They can be employed as electronic switches and turning devices on or off in the digital circuits.
- Inverting and Non-inverting Operation: The PNP transistors can be used for the both inverting and non-inverting signal processing.
- Current Amplification: The current flowing between the collector and emitter is controlled by current at the base terminal.
- Temperature Sensitivity: The PNP transistors are sensitive to temperature changes and which can affect their performance.
- Voltage Drop: They exhibit a voltage drop between collector and emitter when conducting and leading to power dissipation.
Types of PNP Transistor
There are various PNP transistor types:
- Small-signal transistors
- Power transistors
- Darlington transistors
- Schottky transistors.
Construction of PNP Transistor
A PNP transistor is built by sandwiching a layer of N-type semiconductors between two layers of P-type semiconductors. In comparison to the Base areas, the Emitter and Collector regions are highly doped. As a result, the depletion region at both junctions reaches the base region. The Emitter and Collector layers have a larger area than the base layer. Since, the middle layer is so thin and weakly doped, there are considerably fewer free electrons in the Base area.
A PNP transistor consists of the three semiconductor layers:
- Emitter: The outer layer is the P-type semiconductor material.
- Base: The middle layer is N-type semiconductor material.
- Collector: The innermost layer is also P-type semiconductor material.
- These layers are typically arranged as P-N-P with the N-type base layer sandwiched between P-type emitter and collector layers.
Working of PNP Transistor
The operation of a PNP transistor is based on the control of current flow between the emitter and collector by the current flowing into the base. Here's a brief overview:
- When a positive voltage is applied to base-emitter junction. it allows the flow of electrons from emitter to the base.
- The flow of electrons from the emitter to the base creates a path for majority charge carriers to flow from collector to the emitter.
- This controlled flow of holes from the collector to emitter constitutes the output current and it can be amplified based on current flowing into the base.
PNP Transistor biasingProperties
- Voltage Rating: The PNP transistors have specified maximum voltage ratings.
- Current Rating: They are rated for the maximum collector current.
- Gain (Beta): The PNP transistors have a current gain often denoted as β.
- Power Dissipation: They have a maximum power dissipation rating.
- Frequency Response: The PNP transistors have a frequency response that depends on their construction.
- Temperature Range: Their performance is influenced by the temperature variations.
Characteristics
- Common-Emitter Gain: The PNP transistors exhibit high voltage gain in the common-emitter configuration.
- Saturation: They operate in the saturation region when fully turned on.
- Cut-off: In the cut-off region is no current flows between the collector and emitter.
- Active Region: The PNP transistors are active when operating between the cut-off and saturation.
- Base Current Control: The collector-emitter current is controlled by base current.
- Linearity: The PNP transistors have a linear region where the output is a faithful amplification of the input.
Applications
- Amplification: Used in audio amplifiers, signal processing and RF amplifiers.
- Switching: The Employed in digital logic circuits and switching applications.
- Voltage Regulation: Used in voltage regulator circuits to the maintain stable output voltages.
- Oscillators: The PNP transistors can be used in the oscillator circuits.
- Signal Inversion: Used for the inverting signals in electronic circuits.
- Current Amplification: Used to amplify and control current in the various applications.
Difference Between NPN and PNP Transistor
|
Layer Arrangement | N-P-N (Emitter-Base-Collector) | P-N-P (Emitter-Base-Collector) |
Current Carriers | Electrons (majority carriers) | Holes (majority carriers) |
Current Direction | The Electron flow from the emitter to collector | Hole flow from the emitter to collector |
Amplification Direction | The Current amplification is positive | The Current amplification is negative |
Examples
The PNP transistors are used in the various applications such as amplifiers, voltage regulators and switching circuits.
Advantages
- The Complementary to NPN transistors.
- Suitable for the high-power applications.
- Versatile in the amplification and switching.
Disadvantages
- The More susceptible to temperature effects compared to NPN transistors.
- The Less common in some low-power applications.
Conclusion
The PNP transistors are essential electronic components with the diverse applications in amplification, switching and signal processing. Their complementary nature to NPN transistors makes them indispensable in the various circuit designs.
