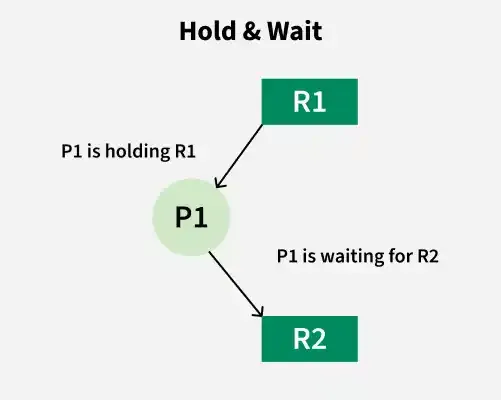

Deadlock Prevention And Avoidance Last Updated : 29 Jan, 2025 Comments Improve Suggest changes Like Article Like Report Deadlock prevention and avoidance are strategies used in computer systems to ensure that different processes can run smoothly without getting stuck waiting for each other forever. Think of it like a traffic system where cars (processes) must move through intersections (resources) without getting into a gridlock.Necessary Conditions for Deadlock Mutual ExclusionHold and WaitNo PreemptionCircular WaitPlease refer Conditions for Deadlock in OS for details.Deadlock PreventionWe can prevent a Deadlock by eliminating any of the above four conditions. Eliminate Mutual Exclusion It is not possible to violate mutual exclusion because some resources, such as the tape drive, are inherently non-shareable. For other resources, like printers, we can use a technique called Spooling (Simultaneous Peripheral Operations Online).In spooling, when multiple processes request the printer, their jobs (instructions of the processes that require printer access) are added to the queue in the spooler directory. The printer is allocated to jobs on a First-Come, First-Served (FCFS) basis. In this way, a process does not have to wait for the printer and can continue its work after adding its job to the queue.Eliminate Hold and Wait Hold and wait is a condition in which a process holds one resource while simultaneously waiting for another resource that is being held by a different process. The process cannot continue until it gets all the required resources.Hold & WaitThere are two ways to eliminate hold and wait:By eliminating wait: The process specifies the resources it requires in advance so that it does not have to wait for allocation after execution starts. For Example, Process1 declares in advance that it requires both Resource1 and Resource2.By eliminating hold: The process has to release all resources it is currently holding before making a new request. For Example: Process1 must release Resource2 and Resource3 before requesting Resource1.Eliminate No PreemptionPreemption is temporarily interrupting an executing task and later resuming it. Two ways to eliminate No Preemption:Processes must release resources voluntarily: A process should only give up resources it holds when it completes its task or no longer needs them.Avoid partial allocation: Allocate all required resources to a process at once before it begins execution. If not all resources are available, the process must wait.Eliminate Circular WaitTo eliminate circular wait for deadlock prevention, we can use order on resource allocation.Assign a unique number to each resource.Processes can only request resources in an increasing order of their numbers.This prevents circular chains of processes waiting for resources, as no process can request a resource lower than what it already holds.Detection and RecoveryAnother approach to dealing with deadlocks is to detect and recover from them when they occur. This can involve killing one or more of the processes involved in the deadlock or releasing some of the resources they hold.Deadlock Avoidance Deadlock avoidance ensures that a resource request is only granted if it won't lead to deadlock, either immediately or in the future. Since the kernel can't predict future process behavior, it uses a conservative approach. Each process declares the maximum number of resources it may need. The kernel allows requests in stages, checking for potential deadlocks before granting them. A request is granted only if no deadlock is possible; otherwise, it stays pending. This approach is conservative, as a process may finish without using the maximum resources it declared.Banker's Algorithm is the technique used for Deadlock Avoidance.Banker's AlgorithmBankers' Algorithm is a resource allocation and deadlock avoidance algorithm that tests all resource requests made by processes. It checks for the safe state, and if granting a request keeps the system in safe state, the request is allowed. However, if no safe state exists, the request is denied. Inputs to Banker's AlgorithmMax needs of resources by each process. Currently, allocated resources by each process. Max free available resources in the system.The request will only be granted under the below conditionIf the request made by the process is less than equal to the max needed for that process. If the request made by the process is less than equal to the freely available resource in the system.TimeoutsTo avoid deadlocks caused by indefinite waiting, a timeout mechanism can be used to limit the amount of time a process can wait for a resource. If the help is unavailable within the timeout period, the process can be forced to release its current resources and try again later.ExampleBelow is an example of a Banker's algorithmTotal resources in system:ABCD6576Available system resources are:ABCD3112Processes (currently allocated resources):ABCDP11221P21033P31210Maximum resources we have for a process:ABCDP13322P21234P31350Need = Maximum Resources Requirement - Currently Allocated ResourcesABCDP12101P20201P30140 Comment More infoAdvertise with us Next Article Deadlock Detection And Recovery K kartik Follow Improve Article Tags : Computer Subject Operating Systems Deadlocks Similar Reads Operating System Tutorial An Operating System(OS) is a software that manages and handles hardware and software resources of a computing device. Responsible for managing and controlling all the activities and sharing of computer resources among different running applications.A low-level Software that includes all the basic fu 4 min read OS BasicsWhat is an Operating System?An Operating System is a System software that manages all the resources of the computing device. Acts as an interface between the software and different parts of the computer or the computer hardware. Manages the overall resources and operations of the computer. Controls and monitors the execution o 9 min read Types of Operating SystemsOperating Systems can be categorized according to different criteria like whether an operating system is for mobile devices (examples Android and iOS) or desktop (examples Windows and Linux). Here, we are going to classify based on functionalities an operating system provides.8 Main Operating System 11 min read Commonly Used Operating SystemThere are various types of Operating Systems used throughout the world and this depends mainly on the type of operations performed. These Operating Systems are manufactured by large multinational companies like Microsoft, Apple, etc. Let's look at the few most commonly used OS in the real world: Win 9 min read Operating System ServicesAn operating system is software that acts as an intermediary between the user and computer hardware. It is a program with the help of which we are able to run various applications. It is the one program that is running all the time. Every computer must have an operating system to smoothly execute ot 6 min read Operating Systems StructuresThe operating system can be implemented with the help of various structures. The structure of the OS depends mainly on how the various standard components of the operating system are interconnected and merge into the kernel. This article discusses a variety of operating system implementation structu 8 min read Booting and Dual Booting of Operating SystemWhen a computer or any other computing device is in a powerless state, its operating system remains stored in secondary storage like a hard disk or SSD. But, when the computer is started, the operating system must be present in the main memory or RAM of the system.What is Booting?When a computer sys 7 min read Introduction of System CallA system call is a programmatic way in which a computer program requests a service from the kernel of the operating system on which it is executed. A system call is a way for programs to interact with the operating system. A computer program makes a system call when it requests the operating system' 11 min read Process & ThreadsIntroduction of Process ManagementProcess Management for a single tasking or batch processing system is easy as only one process is active at a time. With multiple processes (multiprogramming or multitasking) being active, the process management becomes complex as a CPU needs to be efficiently utilized by multiple processes. Multipl 8 min read Process Table and Process Control Block (PCB)While creating a process, the operating system performs several operations. To identify the processes, it assigns a process identification number (PID) to each process. As the operating system supports multi-programming, it needs to keep track of all the processes. For this task, the process control 6 min read Process Schedulers in Operating SystemA process is the instance of a computer program in execution. Scheduling is important in operating systems with multiprogramming as multiple processes might be eligible for running at a time.One of the key responsibilities of an Operating System (OS) is to decide which programs will execute on the C 7 min read Context Switching in Operating SystemContext Switching in an operating system is a critical function that allows the CPU to efficiently manage multiple processes. By saving the state of a currently active process and loading the state of another, the system can handle various tasks simultaneously without losing progress. This switching 4 min read Thread in Operating SystemA thread is a single sequence stream within a process. Threads are also called lightweight processes as they possess some of the properties of processes. Each thread belongs to exactly one process.In an operating system that supports multithreading, the process can consist of many threads. But threa 7 min read CPU SchedulingCPU Scheduling in Operating SystemsCPU scheduling is a process used by the operating system to decide which task or process gets to use the CPU at a particular time. This is important because a CPU can only handle one task at a time, but there are usually many tasks that need to be processed. The following are different purposes of a 8 min read Preemptive and Non-Preemptive SchedulingIn operating systems, scheduling is the method by which processes are given access the CPU. Efficient scheduling is essential for optimal system performance and user experience. There are two primary types of CPU scheduling: preemptive and non-preemptive. Understanding the differences between preemp 5 min read Multiple-Processor Scheduling in Operating SystemIn multiple-processor scheduling multiple CPUs are available and hence Load Sharing becomes possible. However multiple processor scheduling is more complex as compared to single processor scheduling. In multiple processor scheduling, there are cases when the processors are identical i.e. HOMOGENEOUS 8 min read Thread SchedulingThere is a component in Java that basically decides which thread should execute or get a resource in the operating system. Scheduling of threads involves two boundary scheduling. Scheduling of user-level threads (ULT) to kernel-level threads (KLT) via lightweight process (LWP) by the application dev 7 min read DeadlockIntroduction of Deadlock in Operating SystemA deadlock is a situation where a set of processes is blocked because each process is holding a resource and waiting for another resource acquired by some other process. In this article, we will discuss deadlock, its necessary conditions, etc. in detail.Deadlock is a situation in computing where two 11 min read Banker's Algorithm in Operating SystemBanker's Algorithm is a resource allocation and deadlock avoidance algorithm used in operating systems. It ensures that a system remains in a safe state by carefully allocating resources to processes while avoiding unsafe states that could lead to deadlocks.The Banker's Algorithm is a smart way for 8 min read Wait For Graph Deadlock Detection in Distributed SystemDeadlocks are a fundamental problem in distributed systems. A process may request resources in any order and a process can request resources while holding others. A Deadlock is a situation where a set of processes are blocked as each process in a Distributed system is holding some resources and that 5 min read Deadlock Prevention And AvoidanceDeadlock prevention and avoidance are strategies used in computer systems to ensure that different processes can run smoothly without getting stuck waiting for each other forever. Think of it like a traffic system where cars (processes) must move through intersections (resources) without getting int 5 min read Deadlock Detection And RecoveryDeadlock Detection and Recovery is the mechanism of detecting and resolving deadlocks in an operating system. In operating systems, deadlock recovery is important to keep everything running smoothly. A deadlock occurs when two or more processes are blocked, waiting for each other to release the reso 6 min read Deadlock Ignorance in Operating SystemIn this article we will study in brief about what is Deadlock followed by Deadlock Ignorance in Operating System. What is Deadlock? If each process in the set of processes is waiting for an event that only another process in the set can cause it is actually referred as called Deadlock. In other word 5 min read Memory & Disk ManagementMemory Management in Operating SystemThe term memory can be defined as a collection of data in a specific format. It is used to store instructions and process data. The memory comprises a large array or group of words or bytes, each with its own location. The primary purpose of a computer system is to execute programs. These programs, 10 min read Fixed (or static) Partitioning in Operating SystemFixed partitioning, also known as static partitioning, is one of the earliest memory management techniques used in operating systems. In this method, the main memory is divided into a fixed number of partitions at system startup, and each partition is allocated to a process. These partitions remain 8 min read Variable (or Dynamic) Partitioning in Operating SystemIn operating systems, Memory Management is the function responsible for allocating and managing a computer’s main memory. The memory Management function keeps track of the status of each memory location, either allocated or free to ensure effective and efficient use of Primary Memory. Below are Memo 4 min read Paging in Operating SystemPaging is the process of moving parts of a program, called pages, from secondary storage (like a hard drive) into the main memory (RAM). The main idea behind paging is to break a program into smaller fixed-size blocks called pages.To keep track of where each page is stored in memory, the operating s 8 min read Segmentation in Operating SystemA process is divided into Segments. The chunks that a program is divided into which are not necessarily all of the exact sizes are called segments. Segmentation gives the user's view of the process which paging does not provide. Here the user's view is mapped to physical memory. Types of Segmentatio 4 min read Segmentation in Operating SystemA process is divided into Segments. The chunks that a program is divided into which are not necessarily all of the exact sizes are called segments. Segmentation gives the user's view of the process which paging does not provide. Here the user's view is mapped to physical memory. Types of Segmentatio 4 min read Page Replacement Algorithms in Operating SystemsIn an operating system that uses paging for memory management, a page replacement algorithm is needed to decide which page needs to be replaced when a new page comes in. Page replacement becomes necessary when a page fault occurs and no free page frames are in memory. in this article, we will discus 7 min read File Systems in Operating SystemA computer file is defined as a medium used for saving and managing data in the computer system. The data stored in the computer system is completely in digital format, although there can be various types of files that help us to store the data.File systems are a crucial part of any operating system 8 min read File Systems in Operating SystemA computer file is defined as a medium used for saving and managing data in the computer system. The data stored in the computer system is completely in digital format, although there can be various types of files that help us to store the data.File systems are a crucial part of any operating system 8 min read Advanced OSMultithreading in Operating SystemA thread is a path that is followed during a program’s execution. The majority of programs written nowadays run as a single thread. For example, a program is not capable of reading keystrokes while making drawings. These tasks cannot be executed by the program at the same time. This problem can be s 7 min read Compaction in Operating SystemCompaction is a technique to collect all the free memory present in the form of fragments into one large chunk of free memory, which can be used to run other processes. It does that by moving all the processes towards one end of the memory and all the available free space towards the other end of th 3 min read Belady's Anomaly in Page Replacement AlgorithmsBelady's Anomaly is a phenomenon in operating systems where increasing the number of page frames in memory leads to an increase in the number of page faults for certain page replacement algorithms. Normally, as more page frames are available, the operating system has more flexibility to keep the nec 11 min read Techniques to handle ThrashingPrerequisite - Virtual Memory Thrashing is a condition or a situation when the system is spending a major portion of its time servicing the page faults, but the actual processing done is very negligible. Causes of thrashing:High degree of multiprogramming.Lack of frames.Page replacement policy.Thras 6 min read Free Space Management in Operating SystemFree space management is a critical aspect of operating systems as it involves managing the available storage space on the hard disk or other secondary storage devices. The operating system uses various techniques to manage free space and optimize the use of storage devices. Here are some of the com 7 min read RAID (Redundant Arrays of Independent Disks)RAID (Redundant Arrays of Independent Disks) is a technique that makes use of a combination of multiple disks for storing the data instead of using a single disk for increased performance, data redundancy, or to protect data in the case of a drive failure. The term was defined by David Patterson, Ga 15 min read PracticeLast Minute Notes – Operating SystemsAn Operating System (OS) is a system software that manages computer hardware, software resources, and provides common services for computer programs. It acts as an interface between the user and the computer hardware.Table of Content Types of Operating System (OS): ThreadsProcessCPU Scheduling Algor 15+ min read Operating System Interview QuestionsAn operating system acts as a GUI between the user and the computer system. In other words, an OS acts as an intermediary between the user and the computer hardware, managing resources such as memory, processing power, and input/output operations. Here some examples of popular operating systems incl 15+ min read Operating Systems - GATE CSE Previous Year QuestionsThe Operating System(OS) subject has high importance in GATE CSE exam because:large number of questions nearly 10-12% of the total asked significant weightage (9-11 marks) across multiple years which can also be seen in the below given table:YearApprox. Marks from OSNumber of QuestionsDifficulty Lev 2 min read Like
