Matplotlib.pyplot.hist() in Python

Last Updated : 13 Jan, 2025

The matplotlib.pyplot.hist() function in Python is used to create histograms, which are graphical representations of data distribution. It divides the data into bins (non-overlapping intervals) and counts the frequency of values in each bin, plotting them as bars. Lets consider the data values and visualise histogram with help of an example:

Python

import matplotlib.pyplot as plt  data = [32, 96, 45, 67, 76, 28, 79, 62, 43, 81, 70,61, 95, 44, 60, 69, 71, 23        ,69, 54, 76, 67,82, 97, 26, 34, 18, 16, 59, 88, 29, 30, 66,23, 65, 72,         20, 78, 49, 73, 62, 87, 37, 68,81, 80, 77, 92, 81, 52, 43, 68, 71, 86] plt.hist(data) plt.show()

Output:

Screenshot-2024-12-04-130555 — Histogram with hist() with default parameters

Understanding the syntax and parameters

Syntax: matplotlib.pyplot.hist(x, bins=None, range=None, density=False, histtype='bar', color=None, label=None)
x: The data to be represented in the histogram.
bins: Specifies the number of bins or the bin edges for the histogram.
range: The lower and upper range of the bins.
density: If True, the histogram is normalized to form a probability density.
histtype: Defines the type of histogram (e.g., 'bar' for a traditional bar histogram).
color: Sets the color of the bars.
label: Label for the histogram, used in legends.

Create a Histogram in Matplotlib

Using the Matplotlib library in python, we can create many types of histograms. Let us see a few examples to better understand the functionality of hist() function. In this example, we will create a histogram and pass the necessary parameters such as bins, color, density, etc.

Python

import matplotlib.pyplot as plt import numpy as np  mu, sigma = 121, 21 x = np.random.normal(mu, sigma, 1000)  num_bins = 100 n, bins, _ = plt.hist(x, num_bins, density=True, color='green', alpha=0.7)  plt.xlabel('X-Axis') plt.ylabel('Y-Axis') plt.title('matplotlib.pyplot.hist() Example', fontweight='bold')  plt.show()

Output:

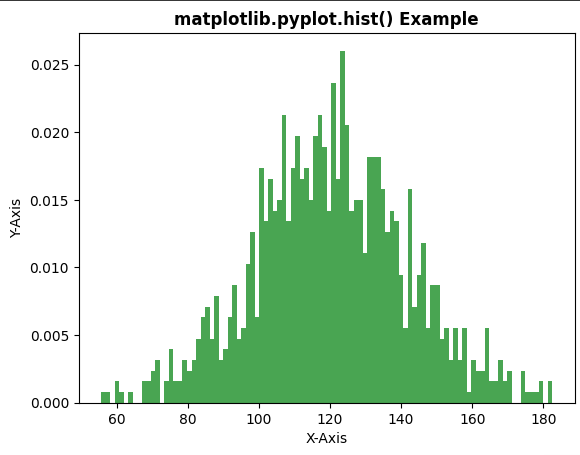

Screenshot-2024-12-05-180917 — Creating the histogram

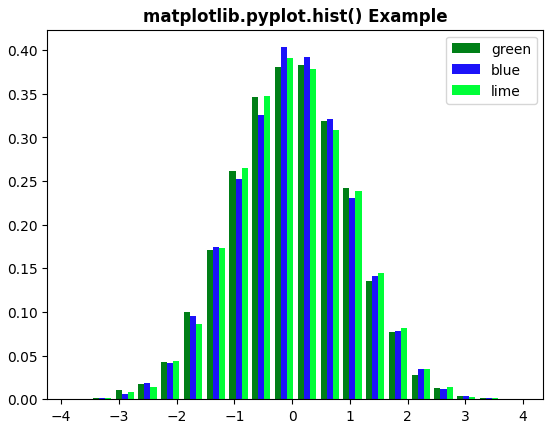

Example 2: Visualize the Specific Bars of Histogram

In this example, we will create a histogram with different attributes using matplotlib.pyplot.hist() function. We define a specific set of colors for the bars of the histogram bars.

Python

import numpy as np import matplotlib.pyplot as plt  x = np.random.randn(10000, 3) colors = ['green', 'blue', 'lime']  plt.hist(x, bins=20, density=True, histtype='bar', color=colors, label=colors)  plt.legend(fontsize=10) plt.title('matplotlib.pyplot.hist() Example', fontweight='bold')  plt.show()
