Interpreter Method Design Pattern in Python
Last Updated : 24 Jul, 2024
The Interpreter design pattern in Python is a behavioral design pattern that facilitates the interpretation and evaluation of expressions or language grammars.
Interpreter Method Design Pattern in PythonImportant Topics to Understand Interpreter Method Design Pattern in Python
What is the Interpreter Method Design Pattern in Python?
The Interpreter Design Pattern helps in evaluating sentences in a language while also giving some guidelines for interpreting sentences using a series of symbols. It is most efficient during the definition of language's grammar as well as during constructing interpreters and parsers for those languages. It lets you build an interpreter for a language using symbols (or expressions) you need to define a class corresponding to each symbol (or expression) and implement an interpret method that evaluates these symbols in a nutshell.
Components of the Interpreter Design Pattern in Python

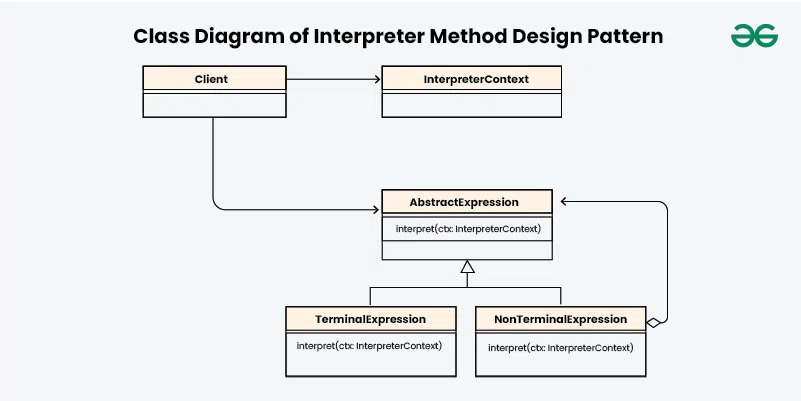

Class Diagram of Interpreter Method Design Pattern1. AbstractExpression
This is an abstract class or interface that declares an abstract interpret() method. It represents the common interface for all concrete expressions in the language.
2. TerminalExpression
These are the concrete classes that implement the AbstractExpression interface. Terminal expressions represent the terminal symbols or leaves in the grammar. These are the basic building blocks that the interpreter uses to interpret the language.
- For example, in an arithmetic expression interpreter, terminal expressions could include literals such as numbers or variables representing numeric values.
- These terminal expressions would evaluate to their respective values directly without further decomposition.
3. NonterminalExpression
These are also concrete classes that implement the AbstractExpression interface. Non-terminal expression classes are responsible for handling composite expressions, which consist of multiple sub-expressions. These classes are tasked to provide the interpretation logic for such composite expressions.
- Another aspect of non-terminal expressions is their responsibility to coordinate the interpretation process by coordinating the interpretation of sub-expressions.
- This involves coordinating the interpretation calls on sub-expressions, aggregating their results, and applying any necessary modifications or operations to achieve the final interpretation of the entire expression
- Non-terminal expressions facilitate the traversal of expression trees during the interpretation process.
- As part of this traversal, they recursively interpret their sub-expressions, ensuring that each part of the expression contributes to the overall interpretation.
4. Context
This class contains information that is global to the interpreter and is maintained and modified during the interpretation process. The context may include variables, data structures, or other state information that the interpreter needs to access or modify while interpreting expressions.
5. Client
The client is responsible for creating the abstract syntax tree (AST) and invoking the interpret() method on the root of the tree. The AST is typically created by parsing the input language and constructing a hierarchical representation of the expressions.
Example of Interpreter Design Pattern in Python
Below is the problem statement to understand interpreter design pattern:
We are going to make an interpreter that can take the form of a simple language for addition and subtraction of numbers.
Component wise code of the above problem statement using interpreter design pattern in python:
1. AbstractExpression
Defines the interpret method that all concrete expressions must implement.
Python from abc import ABC, abstractmethod class Expression(ABC): @abstractmethod def interpret(self, context): pass
2. TerminalExpression
Represents the terminal symbols (e.g., numbers) in the expression.
Python class Number(Expression): def __init__(self, number): self.number = number def interpret(self, context): return self.number
3. NonTerminalExpression
Represents the non-terminal symbols (e.g., addition and subtraction) in the expression.
Python class Add(Expression): def __init__(self, left, right): self.left = left self.right = right def interpret(self, context): return self.left.interpret(context) + self.right.interpret(context) class Subtract(Expression): def __init__(self, left, right): self.left = left self.right = right def interpret(self, context): return self.left.interpret(context) - self.right.interpret(context)
4. Context
Stores global information needed for interpretation. In this simple example, it's an empty class.
Python class Context: def __init__(self): self.variables = {} 5. Client
Builds the syntax tree and interprets the expression.
Python def main(): # Example expression: (5 + 3) - (2 + 1) context = Context() # Building the syntax tree expr = Subtract( Add(Number(5), Number(3)), Add(Number(2), Number(1)) ) # Interpreting the expression result = expr.interpret(context) print(f"The result of the expression is: {result}") if __name__ == "__main__": main() Complete Code of the above example in Python
Here’s the complete code bringing all the components together:
Python from abc import ABC, abstractmethod # AbstractExpression class Expression(ABC): @abstractmethod def interpret(self, context): pass # TerminalExpression class Number(Expression): def __init__(self, number): self.number = number def interpret(self, context): return self.number # NonTerminalExpression for addition class Add(Expression): def __init__(self, left, right): self.left = left self.right = right def interpret(self, context): return self.left.interpret(context) + self.right.interpret(context) # NonTerminalExpression for subtraction class Subtract(Expression): def __init__(self, left, right): self.left = left self.right = right def interpret(self, context): return self.left.interpret(context) - self.right.interpret(context) # Context class Context: def __init__(self): self.variables = {} # Client def main(): # Example expression: (5 + 3) - (2 + 1) context = Context() # Building the syntax tree expr = Subtract( Add(Number(5), Number(3)), Add(Number(2), Number(1)) ) # Interpreting the expression result = expr.interpret(context) print(f"The result of the expression is: {result}") if __name__ == "__main__": main() Output:
Output The result of the expression is: 5
Below is the explanation of the above code
- AbstractExpression (Expression) - Provides a common interface for all expressions ensuring they implement the interpret method.
- TerminalExpression (Number) - Represents constant values in the expression. It returns its value when interpreted.
- NonTerminalExpression (Add and Subtract) - Represents operators that combine other outputs having suboutputs which some interprets before combining them together.
- Context (Context) - It contains worldwide knowledge or parameters required in the course of interpretation. This is a simple example of an empty class, which may be expanded to accommodate variables or other states.
- Client - Constructs the syntax tree and interprets the expression. It demonstrates how to combine and interpret expressions using the pattern.
The client in our example evaluates the expression (5 + 3) - (2 + 1) by building a syntax tree from Number, Add and Subtract nodes and interpreting it yielding the result 5.
Use Cases of Interpreter Design Pattern In Python
For scenarios in which evaluating expressions or parsing simple languages is necessary, the interpreter pattern is utilized:
- Expression Evaluators: Evaluate mathematical expressions, Boolean expressions etc.
- Compilers and Interpreters: Parse and interpret programming languages or domain specific languages.
- Command Processors: Execute commands based on a defined grammar.
When to Use Interpreter Design Pattern in Python
- You need to interpret or evaluate expressions repeatedly and the grammar of the language is stable and not too complex.
- You want to represent a simple language grammar and its parsing directly in code.
- You need to build a simple command processor or scripting language.
When not to Use Interpreter Design Pattern in Python
- The language grammar can be quite difficult and often changes because it can get unruly at times.
- Interpreted languages are known to be slower when compared to compiled ones, since performance is important.
- This design could prove challenging for error prevention and speeding up processes when handling such a language.
Conclusion
The Interpreter Design Pattern offers an orderly method to understand sentences in a language by dissecting the grammar into terminal as well as non terminal expressions; this technique fits well with simple languages and expression evaluators but may not be so good for complex or performance critical applications.
By following this pattern, you can create flexible and maintainable code for evaluating expressions, defining languages and implementing command processors.
