Interaction Overview Diagrams | Unified Modeling Language (UML)

Last Updated : 04 Mar, 2024

Interaction Overview Diagrams (IODs) in UML (Unified Modeling Language) provide a high-level view of the interactions between various components or objects in a system. They are used to visualize the flow of control and interactions within a system, showing how different parts of the system communicate and collaborate to achieve a specific goal.

Interaction-o-D

Important Topics for the Interaction Overview Diagrams

What are Interaction Overview Diagrams?

An Interaction Overview Diagram (IOD) is a type of UML (Unified Modeling Language) diagram that illustrates the flow of interactions between various elements in a system or process. It provides a high-level overview of how interactions occur, including the sequence of actions, decisions, and interactions between different components or objects.

Interaction diagrams give a general overview of system behavior that stakeholders can understand without getting bogged down in specifics.
They help with requirements analysis, documentation, communication, and system design. Overall, they enable stakeholders to comprehend complicated systems and make educated decisions.

Notations for Interaction Overview Diagram

Annotations and explanations from the Interaction Overview UML diagrams feature several fundamental components that help to show control flow and system interactions. Here's a detailed explanation of these notations:

1. Initial Node

Represents the starting point of the interaction. It is shown as a small solid circle with a single outgoing control flow arrow.

Initial-Node-

2. Interaction Use

An Interaction Use is used to represent a reference to another interaction or sequence of interactions defined in another diagram or part of the system.An Interaction Use is represented by a rectangular box . Inside the box, you can include a label that specifies the name or reference of the interaction being used.

Interaction-Use-

3. Interaction Fragment

Interaction fragments are used to group and organize interactions within the diagram.

Interaction-Fragment

4. Object Lifeline

Represents the lifespan of an object during the interaction. It is a vertical dashed line that extends from the top of the diagram to the bottom, with the object's name or class at the top.

Object-Lifeline-

5. Message

Represents communication between objects or components in the system. Messages are shown as arrows between lifelines, indicating the direction of communication.

Message

6. Control Flow

Represents the flow of control or sequence of actions in the interaction. It is shown as a solid arrow between elements in the diagram, indicating the order in which actions are performed.

Control-Flow

7. Fork Node/Join Node

Represents a point in the interaction where multiple parallel actions can occur simultaneously. It is shown as a solid rectangle with multiple outgoing control flow arrows in case of Fork Node and ingoing control flow arrows in case of Join Node.

Fork-Join-Node

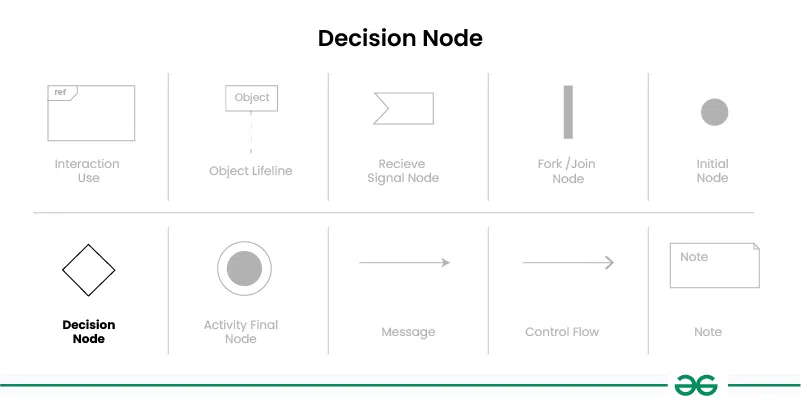

8. Decision Node

Represents a point in the interaction where a decision is made based on a condition. It is shown as a small diamond shape with incoming and outgoing control flow arrows representing different paths based on the decision.

Decision-Node

9. Receive Signal Node

Represents the receipt of a signal or event during the interaction. It is shown as a small rectangle with an incoming control flow arrow.

Received-Signal-Node

10. Final Node

Represents the ending point of the interaction. It is shown as a small solid circle with no outgoing control flow arrows.

Activity-Final-Node

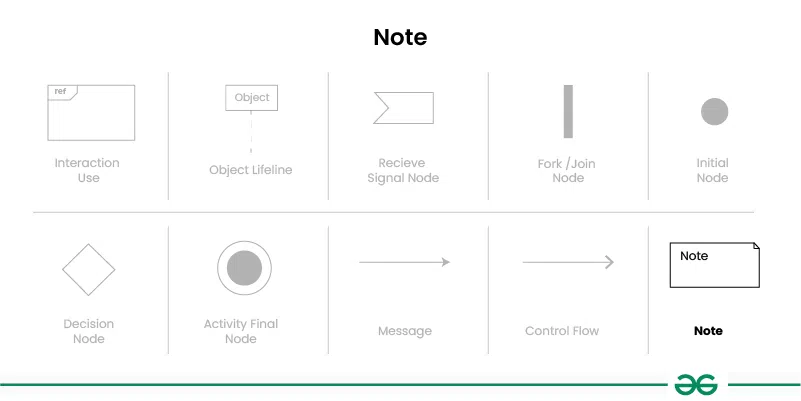

11. Note

Represents additional information or comments about the diagram. Notes are shown as a small rectangle with a label indicating the content of the note.

Note

Example of Interaction Overview Diagram

1. Online shopping interaction overview diagram

Let's understand interaction overview diagram using an example of online shopping system:

Think about an internet-based shopping platform. The flow of control between different interactions, including logging in, viewing products, adding items to the basket, and checking out, may be displayed in the interaction overview diagram. While fragments might depict concurrent operations like managing inventory updates and creating invoices, decision nodes could stand in for activities like selecting payment options.

Purpose: The goal is to provide an online shopping UML interaction overview diagram example.
Summary: The consumer can explore or search the inventory, add or delete goods from their cart, and complete the checkout process.

Example-of-Interaction-overview-Diagram-2

2. Student Admission Interaction Overview Diagram

Let's understand interaction overview diagram using Student Admission System :

The below example illustrates the admission process for a student who has been accepted into a university. Initially, the student is required to either accept or decline the admission offer. Upon acceptance, the student must proceed to register for classes and apply for housing. Once these steps are completed, the student is then required to make payment to the registrar. Failure to submit payment on time will result in the student being excluded by the registrar.

Example-of-Interaction-overview-Diagram-

Benefits of Interaction Overview Diagram

Clarity and Comprehension: By providing a clear visual representation of the control flow of the system, these diagrams help stakeholders quickly grasp complicated systems.
Simplification: Simplifying complicated systems by displaying interactions at a higher level helps stakeholders understand them better and lessens their cognitive burden.
Effective Communication: Overview of Interactions in Effective Communication Diagrams improve collaboration and alignment among stakeholders by offering a comprehensive understanding of system behavior.
Analysis and Optimization: By allowing analysts to spot faults, inefficiencies, or bottlenecks in the control flow, they can help stakeholders maximize the dependability and performance of the system.
Support for Design Decisions: By giving a high-level overview of system behavior and dependencies, these diagrams help with well-informed design and architecture decisions.
Change Management: Overview of Interaction Diagrams enhance effective change management by assisting in anticipating the effects of changes to the system's control flow and reducing risks during updates or revisions.

How to Draw Interaction Overview Diagram

Below are the steps to draw interaction overview diagram:

Step 1: Identify Interactions

Identify the interactions between different elements in your system or process that you want to represent in the diagram. These interactions can include method calls, message exchanges, and other types of communication.

Step 2: Identify Fragments

Determine the types of fragments you will need to use to represent the interactions. This includes identifying loops, alternatives, options, and parallel sequences in the interactions.

Step 3: Create Lifelines

Draw vertical dashed lines (lifelines) for each object or component involved in the interactions. Label each lifeline with the name or class of the object.

Step 4: Add Messages

Use arrows to represent messages between lifelines, indicating the flow of communication between objects. Label the arrows with the type of message (synchronous, asynchronous, return).

Step 5: Add Fragments

Use rectangular boxes to represent fragments, such as combined fragments, interaction operands, or interaction uses. Label each fragment with the type of fragment or the interaction being referenced.

Step 6: Connect Fragments

Use control flow arrows to connect fragments and elements in the diagram, indicating the flow of control between them. Use solid arrows for regular control flow and dashed arrows for exception flow.

Step 7: Add Control Nodes

Use small circles to represent control nodes, such as decision nodes, fork nodes, initial nodes, and final nodes. Place them at appropriate points in the diagram to indicate decisions, parallel actions, and the start and end of the interaction.

Step 8: Review and Validate

Review the diagram to ensure that it accurately represents the interactions and behavior of the system. Validate the diagram against the requirements and specifications of the system to ensure correctness.

Step 9: Refine and Iterate

If necessary, refine the diagram based on feedback and further analysis. Iterate on the diagram until you have a clear and accurate representation of the interactions in the system.

Use Cases of Interaction Overview Diagrams

System Design:
- Overview of Interaction in System Design Diagrams give a thorough understanding of the control flow, making them fundamental tools in system design.
- They provide a clear understanding of how various components interact and function inside the system, which helps designers conceptualize and architect complex systems.
Requirements Analysis:
- Analyzing and verifying system requirements is a critical function of these diagrams in requirements analysis.
- Stakeholders may guarantee that system requirements are appropriately identified and appropriately captured by providing an overview of interactions.
- This will help to create systems that satisfy user expectations and demands.
Documentation:
- Overview of Interactions in Documentation Diagrams are very useful tools for recording the architecture and behavior of systems.
- Developers, architects, and stakeholders can more easily comprehend and refer to system behavior thanks to the visual representation of interactions and control flow that they offer.
- This promotes more efficient communication and teamwork throughout the project lifecycle.
Testing:
- Interaction Overview Diagrams are essential for creating test cases and comprehending system behavior during the testing stages.
- These diagrams can be used by testers to specify test scenarios, pinpoint crucial interactions, and guarantee extensive test coverage, which will enhance system reliability and result in more efficient and effective testing procedures.

Software/Applications to make Interaction Overview Diagrams

The following programs and software tools can be used to create Interaction Overview Diagrams:

Enterprise Architect
Lucidchart
Visual Paradigm
Draw.io
Microsoft Visio
Creately
Gliffy
PlantUML
Edraw Max
SmartDraw

Conclusion

Interaction overview diagrams are crucial parts of the UML toolkit that provide a broad perspective on system activities. Their proficiency in simplifying intricate relationships into a broad overview renders them important in several facets of system conception, evaluation, and record-keeping. These diagrams are essential for improving stakeholder understanding and collaboration because they highlight complex relationships and allow for efficient communication.
