HTML | DOM Style outlineWidth Property

Last Updated : 08 Aug, 2022

The DOM Style outlineWidth property is used to set or return the width of the outline around an element. The outline is the line that is created around the specified element outside the border of the element to make the particular distinct and easier to distinguish.

Syntax:

It returns the outlineWidth property.

object.style.outlineWidth

It is used to set the outlineWidth property.

object.style.outlineWidth = "thin|medium|thick|length|initial| inherit"

Return Values: It returns a string value, that represents the width of an element's outline.

Property Values:

1. thin: It sets the outline width to thin, the outline achieved is thinner than outline specified with width as medium and thick.

Example:

HTML

<!DOCTYPE html> <html> <head>     <title>         DOM Style outlineWidth Property     </title>     <style>         .elem {             outline-style: dashed;         }     </style> </head>  <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <p class="elem">         GeeksforGeeks is a computer science portal         with a huge variety of well written and          explained computer science and programming         articles, quizzes and interview questions.         The portal also has dedicated GATE preparation         and competitive programming sections.     </p>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!--Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = 'thin';         }     </script> </body> </html>

Output:

Before clicking the button:

thin_before

After clicking the button:

thin_after

2. medium: It sets the outline width to default. The width of the outline is thinner than the outline sets thick and thicker than the outline set as thin.

Example:

HTML

<!DOCTYPE html> <html>   <head>     <title>         DOM Style outlineWidth Property     </title>      <style>         .elem {             outline-style: dashed;             outline-width: thin;         }     </style> </head>  <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <p class="elem">         GeeksforGeeks is a computer science portal         with a huge variety of well written and          explained computer science and programming         articles, quizzes and interview questions.         The portal also has dedicated GATE preparation         and competitive programming sections.     </p>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!--Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = 'medium';         }     </script> </body> </html>

Output:

Before clicking the button:

medium-before

After clicking the button:

medium-after

3. thick: It sets the outline width to thick, the outline achieved is thicker than outline specified with width as medium and think.

Example:

HTML

<!DOCTYPE html> <html> <head>     <title>         DOM Style outlineWidth Property     </title>     <style>         .elem {             outline-style: dashed;         }     </style> </head> <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <p class="elem">         GeeksforGeeks is a computer science portal         with a huge variety of well written and          explained computer science and programming         articles, quizzes and interview questions.         The portal also has dedicated GATE preparation         and competitive programming sections.     </p>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!--Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = 'thick';         }     </script> </body> </html>

Output:

Before clicking the button:

thick-before

After clicking the button:

thick-after

4. length: It is used to define the outline width in terms of length units.

Example:

HTML

<!DOCTYPE html> <html> <head>     <title>         DOM Style outlineWidth Property     </title>     <style>         .elem {             outline-style: dashed;         }     </style> </head> <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <p class="elem">         GeeksforGeeks is a computer science portal         with a huge variety of well written and          explained computer science and programming         articles, quizzes and interview questions.         The portal also has dedicated GATE preparation         and competitive programming sections.     </p>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!--Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = '10px';         }     </script> </body> </html>

Output:

Before clicking the button:

length-before

After clicking the button:

length-after

5. initial: It is used to set this property to its default value.

Example:

HTML

<!DOCTYPE html> <html> <head>     <title>         DOM Style outlineWidth Property     </title>     <style>         .elem {             outline-style: dashed;             outline-width: 4px;         }     </style> </head> <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <p class="elem">         GeeksforGeeks is a computer science portal         with a huge variety of well written and          explained computer science and programming         articles, quizzes and interview questions.         The portal also has dedicated GATE preparation         and competitive programming sections.     </p>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!--Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = 'initial';         }     </script> </body> </html>

Output:

Before clicking the button:

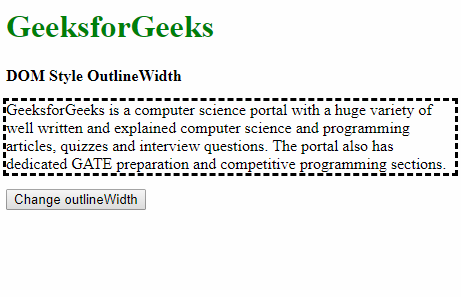

initial-after

After clicking the button:

initial-after

6. inherit: This inherits the property from its parent.

Example:

HTML

<!DOCTYPE html> <html> <head>     <title>         DOM Style outlineWidth property     </title>     <style>         #parent {             padding: 10px;             outline-style: dashed;              /* Set the outlineWidth of             parent element */             outline-width: 5px;         }         .elem {             outline-style: dotted;         }     </style> </head> <body>     <h1 style="color: green">         GeeksforGeeks     </h1>     <b>DOM Style OutlineWidth</b>     <br><br>     <div id="parent">         <p class="elem">             GeeksforGeeks is a computer science portal             with a huge variety of well written and              explained computer science and programming             articles, quizzes and interview questions.             The portal also has dedicated GATE preparation             and competitive programming sections.         </p>     </div>     <br>     <button onclick="changeWidth()">         Change outlineWidth     </button>     <!-- Script to change the outline width -->     <script>         function changeWidth() {             elem = document.querySelector('.elem');             elem.style.outlineWidth = 'inherit';         }     </script> </body> </html>
