Electricity has become an essential part of our everyday life, changing the way we live and work. In the past, people depended on fire for light, warmth, and cooking. Today, we can easily turn on lights, heat our homes, and charge our devices with just a switch or button. This is all possible because of electric current – the flow of electrical charge that powers many of the things we use daily. From small devices like toasters and mobile phones to large industries and transportation systems, electric current plays a key role in making everything work. Here, we will explore what electric current is, how it works, and why it is so important to our modern lives.
Electric Current Definition
Electric current is the flow of electric charge through a conductor, such as a wire. The SI Unit of electric current is the Ampere.
- Electric Current is the movement of electric charge, typically carried by electrons, through a conductor.
- It occurs when there is a difference in electrical potential (voltage) between two points, causing charges to move.
- Electric current is measured in amperes (A), which represents the amount of charge passing through a point in a conductor per second.
There are two main types of electric current:
- Direct Current (DC): The flow of electric charge is in one constant direction.
- Alternating Current (AC): The flow of electric charge periodically reverses direction.
- Current flows through conductors, such as copper wires, due to the presence of free-moving electrons in the material.
- Electric current powers devices, appliances, and systems in homes, industries, and technology.
- The flow of current can be influenced by factors like resistance, temperature, and the material of the conductor.
Read More:
Materials are classified as conductors and insulators based on their ability to conduct electricity:
Conductor:
- A conductor is a material that allows electric charge to flow through it easily.
- Conductors have free electrons that can move easily, facilitating the flow of electric current.
- Common conductors include metals such as copper, aluminum, and silver.
- Properties of conductors:
- Low resistance to the flow of electric current.
- High electrical conductivity.
- Used in electrical wiring and circuits.
Did You Know?
The best conductor of electricity is Silver.
Insulator:
- An insulator is a material that resists the flow of electric current.
- Insulators have very few free electrons, which makes it difficult for electric charges to move through them.
- Common insulators include rubber, plastic, wood, glass, and ceramics.
- Properties of insulators:
- High resistance to electric current.
- Low electrical conductivity.
- Used to protect or separate conductors to prevent electric shocks or short circuits.
Unit of Electric Current
As Electric Charge and Time come under the Fundamental quantities and their units are respectively Coulomb and second. So by the definition of Electric Current, its unit is Coulomb/second.
- In the SI Unit of Electric Current is Ampere (A).
- In the CGS system, the unit of Electric Current is Biot or sometimes called an Abaampere.
- If 6.241 x 10^18 electrons flow through a conductor in one second, the electric current passing through it is defined as one ampere.
- The ampere (A) is the standard unit of electric current, commonly used in electrical and electronic technologies.
- To express smaller currents, units like milliampere (mA), which is 0.001 A, and microampere (μA), which is 0.000001 A, are frequently used.
The electric current can be represented as the rate of flow of electric charge (q) which mathematically can be represented as follows:
What Is Electromotive Force or EMF?
Normally, in a conductor, Electrons are present, and they are not stationary, they keep on moving in random directions, and due to their randomness, the overall displacement of all electrons becomes zero, and hence, no current is produced. In order to produce current, some external force is required to align electrons in one direction and make them move in that one direction, this external force is known as Electromotive Force and is also famous as EMF. It is nothing but the voltage applied to produce current.
Read more : Electromotive Force
Conventional Current Flow Vs Electron Flow
Conventional Current Flow
Conventional current flow refers to the direction in which positive charge is considered to flow in an electrical circuit. By convention, current is assumed to flow from the positive terminal to the negative terminal of a power source, even though, in reality, electrons (which are negatively charged) flow in the opposite direction, from the negative terminal to the positive terminal.
Electron Flow
Electron flow refers to the actual movement of electrons in a conductor, which flows from the negative terminal to the positive terminal of a power source. Since electrons carry a negative charge, they are attracted to the positive terminal and repelled by the negative terminal, resulting in this direction of flow. Electron flow is the opposite of conventional current flow, which assumes positive charge flows from the positive to the negative terminal.
Let us understand the differences between conventional current flow and electron flow:
| Aspect | Conventional Current Flow | Electron Flow |
|---|
| Description | Flows from positive terminal to negative terminal. | Flows from negative terminal to positive terminal |
| Direction of Current | Assume positive charge carriers are moving. | Involves the movement of negative charged electrons. |
| Basis | Commonly used in circuit analysis and electrical engineering | Used to describe the real behaviour of charges in the circuit. |
| Charge Movement | Positive charges are considered to move in the direction of current | Negatively charged electrons move in the direction of current |
| Accuracy | Historically used but not reflective of actual charge movement | Reflects the actual movement of charge in a circuit |
Ohm's Law
German physicist "Georg Simon Ohm" stated that the current flowing in a wire is directly proportional to the voltage drop across it. According to Ohm's Law, the current flowing through a wire is directly proportional to the voltage applied at the ends of the wire provided that the temperature and conductivity remain the same.
V ∝ I
Upon removing the proportionality sign, a proportionality constant is introduced known as Resistance:

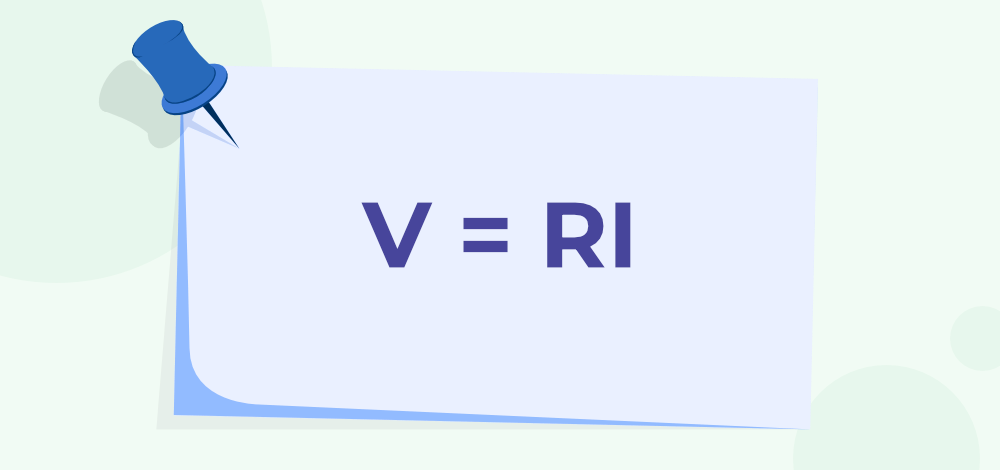

The relationship between voltage (V), current (I), and resistance (R) is expressed as:
V = I × R
Where,
- V is Voltage at the ends of conductor
- R is Resistance offered by the conductor
- I is Current through the wire

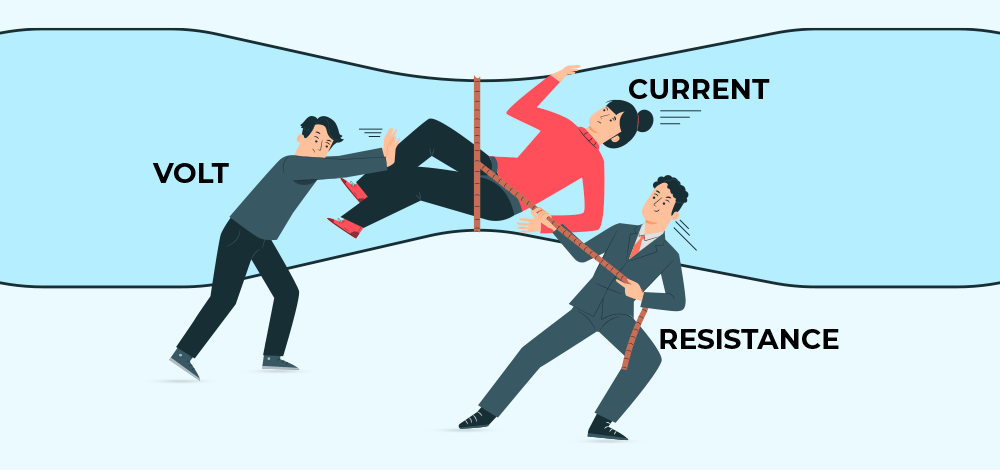

Ohm's Law can be illustrated using the following diagram:
Try it now !
Connect a resistor, ammeter, and voltmeter in a circuit. Vary the resistance and observe how the current changes, then explain the relationship between current and resistance using Ohm’s Law.
Effects of Electric Current
There are different effects that can be noticed due to the flow of electric current in a wire, for example, when current passes through a resistor, the resistor has a property of resisting which does not let the whole current pass but since energy can neither be created nor destroyed, it is converted in heat energy and is released in the form of heat, this effect is called as the heating effect of current. Similarly, we have the magnetic and chemical effects of electric current.
1. Chemical Effect of Electric Current
When Electric current is passed through a which is conducting in nature, the solution breaks in its respective ions, and effects are seen visibly. The major effects that are prominent,
- The color of the solution may change.
- The deposition of metal at the electrodes may be seen.
- There can be the formation of gas bubbles at the electrodes.
Read More:
2. Magnetic Effect of Electric Current
Electric current is nothing but the motion of electrons, and it is known, when charges are stationary, they create Electric Field but when charges are in motion, they create a Magnetic field. When current is passed through a wire and a metallic sheet is placed there with a needle, the needle will be deflected due to the presence of a magnetic field which is produced by the electric current. One of the biggest applications of the Magnetic effect of electric current is Electromagnets, they are formed with the help of passing current.
Read More: Magnetic field on the circular axis current carrying loop
3. Heating Effect of Electric Current
When current flows in a conductor, heat energy is produced and released from the conductor and the amount of effect depends upon the resistance offered by the conductor. If the conductor has to offer high resistance, it simply means that it will not allow most of the current to flow but due to the conservation of energy (energy can neither be created nor destroyed), current that could not pass is converted into heat and the phenomenon is known as the Heating effect of current. The formula for heat energy is given by,
Where,
- H is Heat energy released
- I is current flowing in the conductor
- R is Resistance offered by the conductor
- T is Time for which the current was flowing in the conductor
The heating effect of electric current depends on several factors:
- Duration of current flow (time 't'): The longer the current flows through a conductor, the more heat is produced. So, the time the current is allowed to pass through the conductor plays a key role in heat generation.
- Resistance of the conductor: The higher the resistance of the material, the more heat is generated. This is because the resistance opposes the flow of current, converting electrical energy into heat.
- Amount of current: The greater the current flowing through the conductor, the more heat is generated. More charge carriers moving through the conductor result in more energy being dissipated as heat.
- Applications of the heating effect of current involve Electric Irons, Electric Heaters, filament lamps, Electric kettles, etc.
Read More: Heating Effect of Electric Current
Solved Examples of Electric Current
There are some solved examples of electric current for better understanding given below :
Example 1: In a conductor, 10 Coulombs of charge flow for 5 seconds, determine the current produced.
Solution
The current in a circuit is given by,
I = q/t
⇒ I = 10/5 Amperes
⇒ I = 2 Amperes
Therefore, 2 amperes of current flows in the circuit.
Example 2: In the circuit given below, Find the current flowing through the circuit.
Solution
In the figure provided, it is clear that there are two resistances, and they are in series.
R = R1 + R2
⇒ R = 2+ 2
⇒ R = 4 ohms
From Ohms Law,
V = IR
⇒ I = V/R
⇒ I = 20/4
⇒ I = 5 Amperes
Example 3: What is the Heat energy produced when 2 amperes of current is flowing in a circuit for 5 seconds having an overall resistance in the circuit of 4 ohms?
Solution
Heat Energy Produced is given by,
H = I² × R × t
⇒ H = (2)2×4 × 5
⇒ H = 16 × 5
⇒ H = 80 Joules
Therefore, 80 Joules heat is produced in the circuit.
Example 4:What is the heat energy produced when 3 amperes of current is flowing in a circuit for 10 seconds with an overall resistance of 6 ohms?
Solution
The formula to calculate heat energy is given by:
H = I² × R × t
Substitute the given values:
I = 3 A, R = 6 Ω, t = 10 s
⇒ H = (3)² × 6 × 10
⇒ H = 9 × 6 × 10
⇒ H = 540 joules
The heat energy produced is 540 joules.
Conclusion
Electric current refers to the movement of electric charge through an electrical circuit, representing the amount of electricity flowing. It is measured in amperes (A), and a higher value in amperes indicates a greater flow of electricity. The flow of current is essential for powering devices and systems. The direction of the current is typically considered from the positive to the negative terminal, although electrons move in the opposite direction.
