All Topological Sorts of a Directed Acyclic Graph

Last Updated : 19 May, 2023

Topological sorting for Directed Acyclic Graph (DAG) is a linear ordering of vertices such that for every directed edge uv, vertex u comes before v in the ordering. Topological Sorting for a graph is not possible if the graph is not a DAG.

Given a DAG, print all topological sorts of the graph.

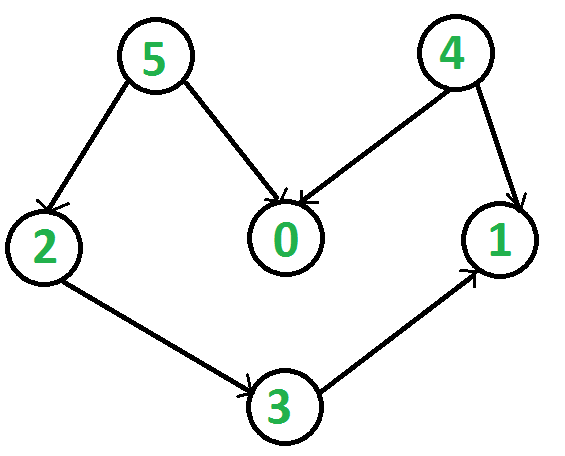

For example, consider the below graph.

graph

All topological sorts of the given graph are: 4 5 0 2 3 1  4 5 2 0 3 1  4 5 2 3 0 1  4 5 2 3 1 0  5 2 3 4 0 1  5 2 3 4 1 0  5 2 4 0 3 1  5 2 4 3 0 1  5 2 4 3 1 0  5 4 0 2 3 1  5 4 2 0 3 1  5 4 2 3 0 1  5 4 2 3 1 0

In a Directed acyclic graph many a times we can have vertices which are unrelated to each other because of which we can order them in many ways. These various topological sorting is important in many cases, for example if some relative weight is also available between the vertices, which is to minimize then we need to take care of relative ordering as well as their relative weight, which creates the need of checking through all possible topological ordering.

We can go through all possible ordering via backtracking , the algorithm step are as follows :

Initialize all vertices as unvisited.
Now choose vertex which is unvisited and has zero indegree and decrease indegree of all those vertices by 1 (corresponding to removing edges) now add this vertex to result and call the recursive function again and backtrack.
After returning from function reset values of visited, result and indegree for enumeration of other possibilities.

Below is the implementation of the above steps.

C++

// C++ program to print all topological sorts of a graph #include <bits/stdc++.h> using namespace std;  class Graph {     int V;    // No. of vertices      // Pointer to an array containing adjacency list     list<int> *adj;      // Vector to store indegree of vertices     vector<int> indegree;      // A function used by alltopologicalSort     void alltopologicalSortUtil(vector<int>& res,                                 bool visited[]);  public:     Graph(int V);   // Constructor      // function to add an edge to graph     void addEdge(int v, int w);      // Prints all Topological Sorts     void alltopologicalSort(); };  //  Constructor of graph Graph::Graph(int V) {     this->V = V;     adj = new list<int>[V];      // Initialising all indegree with 0     for (int i = 0; i < V; i++)         indegree.push_back(0); }  //  Utility function to add edge void Graph::addEdge(int v, int w) {     adj[v].push_back(w); // Add w to v's list.      // increasing inner degree of w by 1     indegree[w]++; }  //  Main recursive function to print all possible //  topological sorts void Graph::alltopologicalSortUtil(vector<int>& res,                                    bool visited[]) {     // To indicate whether all topological are found     // or not     bool flag = false;       for (int i = 0; i < V; i++)     {         //  If indegree is 0 and not yet visited then         //  only choose that vertex         if (indegree[i] == 0 && !visited[i])         {             //  reducing indegree of adjacent vertices             list<int>:: iterator j;             for (j = adj[i].begin(); j != adj[i].end(); j++)                 indegree[*j]--;              //  including in result             res.push_back(i);             visited[i] = true;             alltopologicalSortUtil(res, visited);              // resetting visited, res and indegree for             // backtracking             visited[i] = false;             res.erase(res.end() - 1);             for (j = adj[i].begin(); j != adj[i].end(); j++)                 indegree[*j]++;              flag = true;         }     }      //  We reach here if all vertices are visited.     //  So we print the solution here     if (!flag)     {         for (int i = 0; i < res.size(); i++)             cout << res[i] << " ";         cout << endl;     } }  //  The function does all Topological Sort. //  It uses recursive alltopologicalSortUtil() void Graph::alltopologicalSort() {     // Mark all the vertices as not visited     bool *visited = new bool[V];     for (int i = 0; i < V; i++)         visited[i] = false;      vector<int> res;     alltopologicalSortUtil(res, visited); }  // Driver program to test above functions int main() {     // Create a graph given in the above diagram     Graph g(6);     g.addEdge(5, 2);     g.addEdge(5, 0);     g.addEdge(4, 0);     g.addEdge(4, 1);     g.addEdge(2, 3);     g.addEdge(3, 1);      cout << "All Topological sorts\n";      g.alltopologicalSort();      return 0; }

Java

//Java program to print all topological sorts of a graph import java.util.*;  class Graph {     int V; // No. of vertices      List<Integer> adjListArray[];      public Graph(int V) {          this.V = V;          @SuppressWarnings("unchecked")         List<Integer> adjListArray[] = new LinkedList[V];          this.adjListArray = adjListArray;          for (int i = 0; i < V; i++) {             adjListArray[i] = new LinkedList<>();         }     }     // Utility function to add edge     public void addEdge(int src, int dest) {          this.adjListArray[src].add(dest);      }          // Main recursive function to print all possible     // topological sorts     private void allTopologicalSortsUtil(boolean[] visited,                          int[] indegree, ArrayList<Integer> stack) {         // To indicate whether all topological are found         // or not         boolean flag = false;          for (int i = 0; i < this.V; i++) {             // If indegree is 0 and not yet visited then             // only choose that vertex             if (!visited[i] && indegree[i] == 0) {                                  // including in result                 visited[i] = true;                 stack.add(i);                 for (int adjacent : this.adjListArray[i]) {                     indegree[adjacent]--;                 }                 allTopologicalSortsUtil(visited, indegree, stack);                                  // resetting visited, res and indegree for                 // backtracking                 visited[i] = false;                 stack.remove(stack.size() - 1);                 for (int adjacent : this.adjListArray[i]) {                     indegree[adjacent]++;                 }                  flag = true;             }         }         // We reach here if all vertices are visited.         // So we print the solution here         if (!flag) {             stack.forEach(i -> System.out.print(i + " "));             System.out.println();         }      }          // The function does all Topological Sort.     // It uses recursive alltopologicalSortUtil()     public void allTopologicalSorts() {         // Mark all the vertices as not visited         boolean[] visited = new boolean[this.V];          int[] indegree = new int[this.V];          for (int i = 0; i < this.V; i++) {              for (int var : this.adjListArray[i]) {                 indegree[var]++;             }         }          ArrayList<Integer> stack = new ArrayList<>();          allTopologicalSortsUtil(visited, indegree, stack);     }          // Driver code     public static void main(String[] args) {          // Create a graph given in the above diagram         Graph graph = new Graph(6);         graph.addEdge(5, 2);         graph.addEdge(5, 0);         graph.addEdge(4, 0);         graph.addEdge(4, 1);         graph.addEdge(2, 3);         graph.addEdge(3, 1);          System.out.println("All Topological sorts");         graph.allTopologicalSorts();     } }

Python3

# class to represent a graph object class Graph:      # Constructor     def __init__(self, edges, N):          # A List of Lists to represent an adjacency list         self.adjList = [[] for _ in range(N)]          # stores in-degree of a vertex         # initialize in-degree of each vertex by 0         self.indegree = [0] * N          # add edges to the undirected graph         for (src, dest) in edges:              # add an edge from source to destination             self.adjList[src].append(dest)              # increment in-degree of destination vertex by 1             self.indegree[dest] = self.indegree[dest] + 1   # Recursive function to find  # all topological orderings of a given DAG def findAllTopologicalOrders(graph, path, discovered, N):      # do for every vertex     for v in range(N):          # proceed only if in-degree of current node is 0 and         # current node is not processed yet         if graph.indegree[v] == 0 and not discovered[v]:              # for every adjacent vertex u of v,              # reduce in-degree of u by 1             for u in graph.adjList[v]:                 graph.indegree[u] = graph.indegree[u] - 1              # include current node in the path              # and mark it as discovered             path.append(v)             discovered[v] = True              # recur             findAllTopologicalOrders(graph, path, discovered, N)              # backtrack: reset in-degree              # information for the current node             for u in graph.adjList[v]:                 graph.indegree[u] = graph.indegree[u] + 1              # backtrack: remove current node from the path and             # mark it as undiscovered             path.pop()             discovered[v] = False      # print the topological order if      # all vertices are included in the path     if len(path) == N:         print(path)   # Print all topological orderings of a given DAG def printAllTopologicalOrders(graph):      # get number of nodes in the graph     N = len(graph.adjList)      # create an auxiliary space to keep track of whether vertex is discovered     discovered = [False] * N      # list to store the topological order     path = []      # find all topological ordering and print them     findAllTopologicalOrders(graph, path, discovered, N)  # Driver code if __name__ == '__main__':      # List of graph edges as per above diagram     edges = [(5, 2), (5, 0), (4, 0), (4, 1), (2, 3), (3, 1)]      print("All Topological sorts")      # Number of nodes in the graph     N = 6      # create a graph from edges     graph = Graph(edges, N)      # print all topological ordering of the graph     printAllTopologicalOrders(graph)  # This code is contributed by Priyadarshini Kumari

using System; using System.Collections.Generic;  class Graph {     int V;     List<int>[] adjListArray;      public Graph(int V)     {         this.V = V;         adjListArray = new List<int>[V];          for (int i = 0; i < V; i++)         {             adjListArray[i] = new List<int>();         }     }      public void addEdge(int src, int dest)     {         this.adjListArray[src].Add(dest);     }      private void allTopologicalSortsUtil(bool[] visited, int[] indegree, List<int> stack)     {         bool flag = false;          for (int i = 0; i < this.V; i++)         {             if (!visited[i] && indegree[i] == 0)             {                 visited[i] = true;                 stack.Add(i);                 foreach (int adjacent in this.adjListArray[i])                 {                     indegree[adjacent]--;                 }                 allTopologicalSortsUtil(visited, indegree, stack);                  visited[i] = false;                 stack.RemoveAt(stack.Count - 1);                 foreach (int adjacent in this.adjListArray[i])                 {                     indegree[adjacent]++;                 }                  flag = true;             }         }         if (!flag)         {             stack.ForEach(i => Console.Write(i + " "));             Console.WriteLine();         }     }      public void allTopologicalSorts()     {         bool[] visited = new bool[this.V];         int[] indegree = new int[this.V];          for (int i = 0; i < this.V; i++)         {             foreach (int var in this.adjListArray[i])             {                 indegree[var]++;             }         }          List<int> stack = new List<int>();          allTopologicalSortsUtil(visited, indegree, stack);     }      static void Main(string[] args)     {         Graph graph = new Graph(6);         graph.addEdge(5, 2);         graph.addEdge(5, 0);         graph.addEdge(4, 0);         graph.addEdge(4, 1);         graph.addEdge(2, 3);         graph.addEdge(3, 1);          Console.WriteLine("All Topological sorts");         graph.allTopologicalSorts();     } }

JavaScript

<script>  // class to represent a graph object class Graph{     // Constructor      constructor(edges, N){                  // A List of Lists to represent an adjacency list         this.adjList = new Array(N);         for(let i = 0; i < N; i++){             this.adjList[i] = new Array();         }                  // stores in-degree of a vertex         // initialize in-degree of each vertex by 0         this.indegree = new Array(N).fill(0);                  // add edges to the undirected graph         for(let i = 0; i < edges.length; i++){             let src = edges[i][0];             let dest = edges[i][1];                          //add an edge from source to destination             this.adjList[src].push(dest);                          // increment in-degree of destination vertex by 1             this.indegree[dest] = this.indegree[dest] + 1;         }                  } }   // Recursive function to find  // all topological orderings of a given DAG function findAllTopologicalOrders(graph, path, discovered, N){       // do for every vertex     for(let v = 0; v < N; v++){                  // proceed only if in-degree of current node is 0 and         // current node is not processed yet         if(graph.indegree[v] == 0 &&  !discovered[v]){                          // for every adjacent vertex u of v,              // reduce in-degree of u by 1             for(let indx = 0; indx < graph.adjList[v].length; indx++){                 let u = graph.adjList[v][indx];                 graph.indegree[u] = graph.indegree[u] - 1;             }         }                  // include current node in the path          // and mark it as discovered         path.push(v);         discovered[v] = true;                  // recur         findAllTopologicalOrders(graph, path, discovered, N)          // backtrack: reset in-degree          // information for the current node         for(let indx = 0; indx < graph.adjList[v].length; indx++){             let u = graph.adjList[v][indx];             graph.indegree[u] = graph.indegree[u] + 1;         }          // backtrack: remove current node from the path and         // mark it as undiscovered         path.pop();         discovered[v] = false;      }               // print the topological order if      // all vertices are included in the path     if(path.length == N){         console.log(path);     } }         // Print all topological orderings of a given DAG function printAllTopologicalOrders(graph){          // get number of nodes in the graph     let N = graph.adjList.length;          // create an auxiliary space to keep track of whether vertex is discovered     let discovered = new Array(N).fill(false);          // list to store the topological order     let path = [];          // find all topological ordering and print them     findAllTopologicalOrders(graph, path, discovered, N) }   // Driver code  // List of graph edges as per above diagram let edges = [[5, 2], [5, 0], [4, 0], [4, 1], [2, 3], [3, 1]];  console.log("All Topological sorts");  // Number of nodes in the graph let N = 6;  // create a graph from edges let graph = new Graph(edges, N);  // print all topological ordering of the graph printAllTopologicalOrders(graph);  // This code is contributed by gautam goel.     </script>

Output

All Topological sorts 4 5 0 2 3 1  4 5 2 0 3 1  4 5 2 3 0 1  4 5 2 3 1 0  5 2 3 4 0 1  5 2 3 4 1 0  5 2 4 0 3 1  5 2 4 3 0 1  5 2 4 3 1 0  5 4 0 2 3 1  5 4 2 0 3 1  5 4 2 3 0 1  5 4 2 3 1 0

Time Complexity: O(V!), Here V is the number of vertices, V! is absolute worst case. (worst case example - any graph with no edges at all)
Auxiliary Space: O(V), for creating an additional array and recursive stack space.

This articles is contributed by Utkarsh Trivedi.
