Block Coding in Digital Electronics
Last Updated : 10 Sep, 2024
The block coding is a technique through which much reliability is injected into the data that is sent over the network or kept in a device. It does this by adding extra information bits to every block of data; hence, it identifies the errors and corrects the same if it happens to occur on the way. Because of this added redundancy, it becomes easier to identify the problems caused by noise or interference. Thus, applying block coding concurrently with methods of error correction will make sure the data will arrive at the destination place accurately. That's why block coding has become a vital component in modern digital communication and storage systems.
What is Block Coding?
Block coding is a method used in digital electronics to encode data into a specific format. The purpose of block coding is to add redundant information to the data, which can be used to detect and correct errors that may occur during transmission or storage. Block coding is often used in conjunction with error correction codes (ECCs) to provide a more robust way of transmitting and storing data.
Types of Block Codes
- Hamming Codes: Hamming codes are a type of block code that can detect and correct single-bit errors. They are commonly used in digital systems to ensure the accuracy of transmitted data.
- Reed-Solomon Codes: Reed-Solomon codes are a type of block code that can correct multiple-bit errors. They are commonly used in storage systems, such as CD-ROMs and DVDs, to ensure the integrity of stored data.
- BCH Codes: BCH codes are a type of block code that can correct a specific number of errors. They are commonly used in digital communication systems to ensure the accuracy of transmitted data.
- Block coding can provide many benefits in digital electronics, including improved reliability, increased data accuracy, and greater efficiency in the transmission and storage of data. However, block coding also has some disadvantages, including increased complexity and increased overhead in terms of processing time and memory usage.
In summary, block coding is a method used in digital electronics to encode data into a specific format, adding redundant information to the data to detect and correct errors that may occur during transmission or storage. There are several types of block codes, including Hamming codes, Reed-Solomon codes, and BCH codes, and they offer many benefits in terms of data accuracy and reliability, but also come with some disadvantages, such as increased complexity and overhead.
Techniques for Conversion of Digital Data to Digital Signal
- Line Coding
- Block Coding
- Scrambling
Out of which Line coding is always needed, block coding and scrambling may or may not be needed. Block coding helps in error detection and re-transmission of the signal. It is normally referred to as mB/nB coding as it replaces each m-bit data group with an n-bit data group (where n>m). Thus, its adds extra bits (redundancy bits) which helps in synchronization at receiver's and sender's end and also providing some kind of error detecting capability. It normally involves three steps: division, substitution, and combination. In the division step, a sequence of bits is divided into groups of m-bits. In the substitution step, we substitute an m-bit group for an n-bit group. Finally, the n-bit groups are combined together to form a stream which has more bits than the original bits. Examples of mB/nB coding: 4B/5B (four binary/five binary ) - This coding scheme is used in combination with NRZ-I. The problem with NRZ-I was that it has a synchronization problem for long sequences of zeros. So, to overcome it we substitute the bit stream from 4-bit to 5-bit data group before encoding it with NRZ-I. So that it does not have a long stream of zeros. The block-coded stream does not have more than three consecutive zeros (see encoding table).

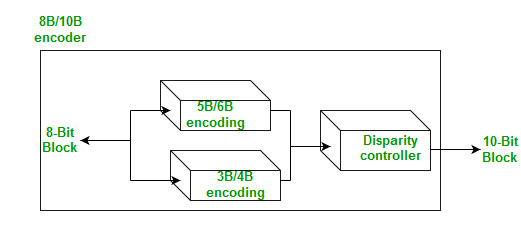

At the receiver, the NRZ-I encoded digital signal is first decoded into a stream of bits and then decoded again to remove the redundancy bits. Drawback - Though 4B/5B encoding solves the problem of synchronization,it increases the signal rate of NRZ-L.Moreover,it does not solve the DC component problem of NRZ-L. 8B/10B (eight binary/ten binary) - This encoding is similar to 4B/5B encoding except that a group of 8 bits of data is now substituted by a 10-bit code and it provides greater error detection capability than 4B/5B. It is actually a combination of 5B/6B and 3B/4B encoding.The most five significant bits of a 10-bit block is fed into the 5B/6B encoder; the least 3 significant bits is fed into a 3B/4B encoder. The split is done to simplify the mapping table.
A group of 8 bits can have 2^8 different combinations while a group of 10 bits can have 2^10 different combinations. This means that there are 2^10-2^8=768 redundant groups that are not used for 8B/10B encoding and can be used for error detection and disparity check. Thus, this technique is better than 4B/5B because of better error-checking capability and better synchronization. Reference- Data Communications and Networking By Behrouz A.Forouzan(Book)
Advantages of Block Coding in Digital Electronics
- Improved Reliability: Block coding can improve the reliability of digital systems by adding redundant information to the data, which can be used to detect and correct errors that may occur during transmission or storage.
- Increased Data Accuracy: Block coding can help ensure the accuracy of transmitted or stored data by detecting and correcting errors that may occur.
- Greater Efficiency: Block coding can increase the efficiency of digital systems by reducing the number of errors that occur during transmission or storage, reducing the need for retransmission or storage.
- Robustness: Block coding can provide a more robust way of transmitting and storing data by detecting and correcting errors that may occur, reducing the impact of errors on the overall system.
Disadvantages of Block Coding in Digital Electronics:
- Increased Complexity: Block coding can increase the complexity of digital systems, making them more difficult to design, implement, and maintain.
- Increased Overhead: Block coding can increase the overhead of digital systems in terms of processing time and memory usage, reducing overall system performance.
- Increased Cost: Block coding can increase the cost of digital systems, as it requires additional hardware or software to implement the error correction and detection mechanisms.
Applications of Block Coding in Digital Electronics
- Communication Systems: Block coding allows for error-free transmission of data through the internet or even mobile networks and satellites, when it appears interference or noise would affect it.
- Data Storage: It finds its usage in storage devices ranging from hard disks and SSDs to CDs and DVDs for ensuring that there is no loss or corruption of data for maintaining file safety from being damaged or decaying with time.
- Optical Fiber Networks: In fiber optic cables, which transmit data as light, block coding helps fix any errors that may occur in these long-distance-traveling light signals.
- Wireless Communication: In Wi-Fi, Bluetooth, and cellular networks-say, 4G and 5G-block coding helps maintain your stable connection by reducing errors caused either due to a weak signal or interference.
- Digital TV and Broadcasting: It ensures that your digital TV or radio broadcasts come through clear as should be, even if the signal is weak or there's interference, for a smooth view or listening experience.
- Video and Audio Streaming: Block coding aids in ensuring that movies, music, and videos stream well on the internet through correcting errors brought about by network issues or slow internet.
- Security Data Transmission: This will provide an extra layer of security since unauthorized users will face increased difficulty while decoding the data to be transmitted.
- Digital Signal Processing: Block coding ensures that when signals, either audio or video, are digitally processed, the output is correct, even if errors take place during the processing.
Conclusion
Block coding represents one of the basic techniques of digital electronics, which allows any application to make sure that data is sent or stored as accurately as possible. The very basic underlying principle of such a technique consists in adding supplementary information to the data itself so that, if some error happens, it can be detected and thus corrected. Increasing the complexity of systems and requiring more processing power, advantages regarding increased reliability, reduced errors, and higher security have made this technique mandatory for virtually all modern digital communication and storage systems.
