Data Partitioning Techniques in System Design

Last Updated : 01 Nov, 2024
Comments
Improve
Suggest changes
Like Article
Like
Report

Using data partitioning techniques, a huge dataset can be divided into smaller, easier-to-manage portions. These techniques are applied in a variety of fields, including distributed systems, parallel computing, and database administration.

Data-Partitioning-Techniques-in-System-Design
Data Partitioning Techniques in System Design

Table of Content

  • What is Data Partitioning?
  • Why do we need Data Partitioning?
  • Methods of Data Partitioning
    • Horizontal Partitioning/Sharding
    • Vertical Partitioning
    • Key-based Partitioning
    • Range Partitioning
    • Hash-based Partitioning
    • Round-Robin Partitioning
  • Real-World Examples of Data Partitioning

What is Data Partitioning?

The process of splitting a dataset into more manageable, smaller pieces in order to improve efficiency, scalability, and performance is known as data partitioning.

  • It can be accomplished by either vertical partitioning, which separates data into columns, or horizontal partitioning, which divides data into rows according to particular criteria.
  • This method is especially helpful in databases, big data processing frameworks, and machine learning applications since it enables quicker query execution, simpler management of massive datasets, and better resource use.

Why do we need Data Partitioning?

Data partitioning is essential for several reasons:

  • Performance Improvement: By breaking data into smaller segments, systems can access only the relevant partitions, leading to faster query execution and reduced load times.
  • Scalability: As datasets grow, partitioning allows for easier management and distribution across multiple servers or storage systems, enabling horizontal scaling.
  • Efficient Resource Utilization: It helps optimize the use of resources by allowing systems to focus processing power on specific partitions rather than the entire dataset.
  • Enhanced Manageability: Smaller partitions are easier to back up, restore, and maintain, facilitating better data governance and maintenance practices.

Methods of Data Partitioning

Below are the main methods of Data Partitioning:

1. Horizontal Partitioning/Sharding

In this technique, the dataset is divided based on rows or records. Each partition contains a subset of rows, and the partitions are typically distributed across multiple servers or storage devices. Horizontal partitioning is often used in distributed databases or systems to improve parallelism and enable load balancing.

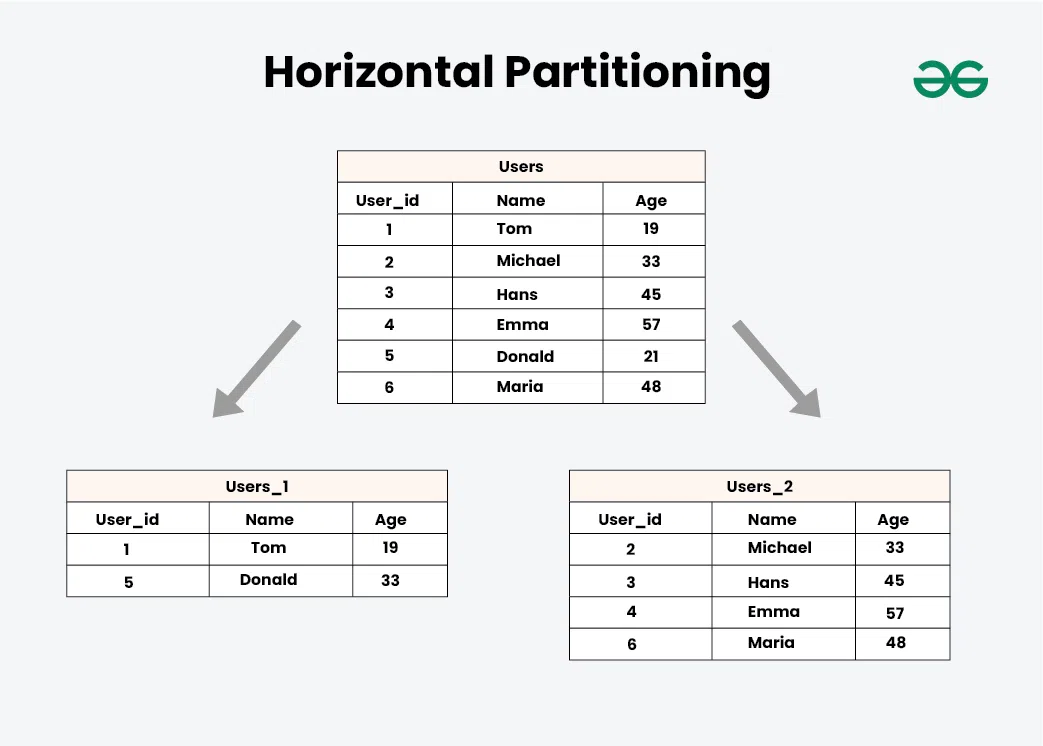

Horizontal-Partitioning
Horizontal Partitioning
  • Advantages of Horizontal Partitioning/Sharding
    • Greater scalability: Large datasets can be processed in parallel thanks to horizontal partitioning, which divides data among multiple computers or storage devices.
    • Load balancing: Data partitioning allows for the equitable distribution of workload across multiple nodes, preventing bottlenecks and improving system performance.
    • Data separation: Data isolation and fault tolerance are enhanced since each partition can be controlled separately. Even if one partition fails, the others can continue to function.
  • Disadvantages of Horizontal Partitioning/Sharding
    • Join operations: Horizontal partitioning can make join operations across multiple partitions more complex and potentially slower, as data needs to be fetched from different nodes.
    • Data skew: If the distribution of data is uneven or if some partitions receive more queries or updates than others, it can result in data skew, impacting performance and load balancing.

2. Vertical Partitioning

Vertical partitioning separates the dataset according to columns or attributes, in contrast to horizontal partitioning. Each partition in this method has a subset of columns for every row. When certain columns are visited more frequently than others or when different columns have different access patterns, vertical partitioning might be helpful.

Vertical-Partitioning
Vertical Partitioning
  • Advantages of Vertical Partitioning
    • Improved query performance: By placing frequently accessed columns in a separate partition, vertical partitioning can enhance query performance by reducing the amount of data read from storage.
    • Efficient data retrieval: When a query only requires a subset of columns, vertical partitioning allows retrieving only the necessary data, saving storage and I/O resources.
    • Simplified schema management: With vertical partitioning, adding or removing columns becomes easier, as the changes only affect the respective partitions.
  • Disadvantages of Vertical Partitioning
    • Increased complexity: Vertical partitioning can lead to more complex query execution plans, as queries may need to access multiple partitions to gather all the required data.
    • Joins across partitions: Joining data from different partitions can be more complex and potentially slower, as it involves retrieving data from different partitions and combining them.
    • Limited scalability: Vertical partitioning may not be as effective for datasets that continuously grow in terms of the number of columns, as adding new columns may require restructuring the partitions.

3. Key-based Partitioning

This approach divides the data according to a specific attribute value or key. Each partition of the dataset contains all the information related to a particular key value. In distributed databases or systems, key-based partitioning is frequently used to spread the data uniformly and enable effective key lookup-based data retrieval.

Key-based-Partitioning
Key-based Partitioning
  • Advantages of Key-based Partitioning
    • Even data distribution: Key-based partitioning ensures that data with the same key value is stored in the same partition, enabling efficient data retrieval by key lookups.
    • Scalability: Key-based partitioning can distribute data evenly across partitions, allowing for better parallelism and improved scalability.
    • Load balancing: By distributing data based on key values, the workload is balanced across multiple partitions, preventing hotspots and optimizing performance.
  • Disadvantages of Key-based Partitioning
    • Skew and hotspots: If the key distribution is uneven or if certain key values are more frequently accessed than others, it can lead to data skew or hotspots, impacting performance and load balancing.
    • Limited query flexibility: Key-based partitioning is most efficient for queries that primarily involve key lookups. Queries that span multiple keys or require range queries may suffer from increased complexity and potentially slower performance.
    • Partition management: Managing partitions based on key values requires careful planning and maintenance, especially when the dataset grows or the key distribution changes.

4. Range Partitioning

The dataset is divided using range partitioning based on a preset range of values. For example, if your dataset has timestamps, you can divide it according to a specific time range. Range partitioning might be useful when you have data with natural ordering and wish to distribute it evenly based on the range of values.

Range-Partitioning
Range Partitioning
  • Advantages of Range Partitioning
    • Natural ordering: Range partitioning is suitable for datasets with a natural ordering based on a specific attribute. It allows for efficient data retrieval based on ranges of values.
    • Even data distribution: By dividing the dataset based on ranges, range partitioning can distribute the data evenly across partitions, ensuring load balancing and optimal performance.
    • Simplified query planning: Range partitioning simplifies query planning when queries primarily involve range-based conditions, as the system knows which partition(s) to access based on the range specified.
  • Disadvantages of Range Partitioning
    • Uneven data distribution: If the data distribution is not evenly distributed across ranges, it can lead to data skew and impact load balancing and query performance.
    • Data growth challenges: As the dataset grows, the ranges may need to be adjusted or new partitions added, requiring careful management and potentially affecting existing queries and data distribution.
    • Joins and range queries: Range partitioning can introduce complexity when performing joins across partitions or when queries involve multiple non-contiguous ranges, potentially leading to performance challenges.

5. Hash-based Partitioning

The technique of employing a hash function to analyze data and determine which division it belongs to is known as hash partitioning. After being fed the data, the hash function generates a hash value that is used to classify the data into a particular division. Hashing-based partitioning can help in load balancing and speedy data retrieval by dividing data among partitions at random.

Hash-based-Partitioning
Hash-based Partitioning
  • Advantages of Hash-based Partitioning
    • Even data distribution: Hash-based partitioning provides a random distribution of data across partitions, ensuring even data distribution and load balancing.
    • Scalability: Hash-based partitioning enables scalable parallel processing by evenly distributing data across multiple nodes.
    • Simpleness: Hash-based partitioning does not depend on any particular data properties or ordering, and it is relatively easy to implement.
  • Disadvantages of Hash-based Partitioning
    • Key-based queries: Hash-based partitioning is not suitable for efficient key-based lookups, as the data is distributed randomly across partitions. Key-based queries may require searching across multiple partitions.
    • Load balancing challenges: In some cases, the distribution of data may not be perfectly balanced, resulting in load imbalances and potential performance issues.
    • Partition management: Hash-based partitioning may require adjustments to the number of partitions or hash functions as the dataset grows or the system requirements change, necessitating careful management and potential data redistribution.

6. Round-Robin Partitioning

Data is cyclically and equally distributed among partitions in round-robin partitioning. Regardless of the properties of the data, each split is sequentially assigned the next accessible data item. Implementing round-robin partitioning is simple and can offer a minimal degree of load balancing.

Round-robin-Partitioning
Round-robin Partitioning
  • Advantages of Round-robin Partitioning
    • Simple implementation: Round-robin partitioning is straightforward to implement, as it assigns data items to partitions in a cyclic manner without relying on any specific data characteristics.
    • Basic load balancing: Round-robin partitioning can provide a basic level of load balancing, ensuring that data is distributed across partitions evenly.
    • Scalability: It is made possible by round-robin partitioning, which divides the data into several parts and permits parallel processing.
  • Disadvantages of Round-robin Partitioning
    • Uneven data distribution or a number of partitions that are not a multiple of the total number of data items may cause round-robin partitioning to produce unequal partition sizes.
    • Inefficient data retrieval: Round-robin partitioning does not consider any data characteristics or access patterns, which may result in inefficient data retrieval for certain queries.
    • Limited query optimization: Round-robin partitioning does not optimize for specific query patterns or access patterns, potentially leading to suboptimal query performance.

Let's understand different methods using table:

Partitioning Technique Description Suitable Data Query Performance Data Distribution Complexity
Horizontal Partitioning

Divides dataset based on rows/records

Large datasets

Complex joins

Uneven distribution

Distributed transaction management

Vertical Partitioning

Divides dataset based on columns/attributes

Wide tables

Improved retrieval

Efficient storage

Increased query complexity

Key-based Partitioning

Divides dataset based on specific key

Key-value datasets

Efficient key lookups

Even distribution by key

Limited query flexibility



Range Partitioning

Divides dataset based on specific range

Ordered datasets

Efficient range queries

Even distribution by range

Joins and range queries



Hash-based Partitioning

Divides dataset based on hash function

Unordered datasets

Even distribution

Random distribution

Inefficient key-based queries

Round-robin Partitioning

Divides dataset in a cyclic manner

Equal-sized datasets

Basic load balancing

Even distribution

Limited query optimization

These are a few examples of data partitioning strategies. The dataset's properties, access patterns, and the needs of the particular application or system all play a role in the choice of partitioning strategy.

Real-World Examples of Data Partitioning

Below are some real-world examples of data partitioning:

  • E-commerce Platforms:
    • Depending on the geographic location (e.g., North America, Europe, Asia), an online store may divide its customer data.
    • By doing this, the business can improve user experience and performance by streamlining shipping operations, inventory control, and marketing strategies for various geographical areas.
  • Banking and Finance:
    • Financial firms frequently separate transaction data according to account type or date.
    • For example, to enable quicker processing and reporting, transactions could be divided into daily partitions.
    • Since fraud detection systems only examine pertinent transaction partitions, this can increase their effectiveness.
  • Social Media:
    • User data may be divided by demographics or interests on social media sites like Facebook and Twitter.
    • This makes it possible to target adverts and content recommendations more effectively, guaranteeing that users see more related posts and ads without overloading the system with extraneous information.
