Count the number of nodes at a given level in a tree using DFS

Last Updated : 23 Jan, 2024

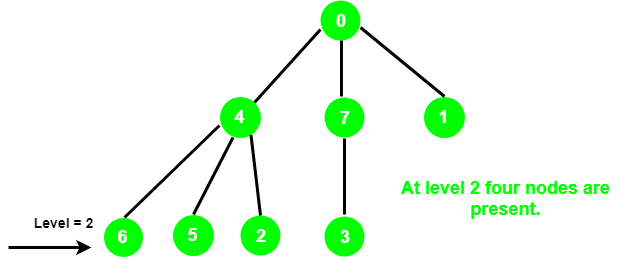

Given an integer l and a tree represented as an undirected graph rooted at vertex 0. The task is to print the number of nodes present at level l.

Examples:

Input: l = 2

Output: 4

We have already discussed the BFS approach, in this post we will solve it using DFS.

Approach: The idea is to traverse the graph in a DFS manner. Take two variables, count and curr_level. Whenever the curr_level = l increment the value of the count.

Below is the implementation of the above approach:

C++

// C++ implementation of the approach #include <bits/stdc++.h> using namespace std;  // Class to represent a graph class Graph {      // No. of vertices     int V;      // Pointer to an array containing     // adjacency lists     list<int>* adj;      // A function used by NumOfNodes     void DFS(vector<bool>& visited, int src, int& curr_level,              int level, int& NumberOfNodes);  public:     // Constructor     Graph(int V);      // Function to add an edge to graph     void addEdge(int src, int des);      // Returns the no. of nodes     int NumOfNodes(int level); };  Graph::Graph(int V) {     this->V = V;     adj = new list<int>[V]; }  void Graph::addEdge(int src, int des) {     adj[src].push_back(des);     adj[des].push_back(src); }  // DFS function to keep track of // number of nodes void Graph::DFS(vector<bool>& visited, int src, int& curr_level,                 int level, int& NumberOfNodes) {     // Mark the current vertex as visited     visited[src] = true;      // If current level is equal     // to the given level, increment     // the no. of nodes     if (level == curr_level) {         NumberOfNodes++;     }     else if (level < curr_level)         return;     else {         list<int>::iterator i;          // Recur for the vertices         // adjacent to the current vertex         for (i = adj[src].begin(); i != adj[src].end(); i++) {             if (!visited[*i]) {                 curr_level++;                 DFS(visited, *i, curr_level, level, NumberOfNodes);             }         }     }     curr_level--; }  // Function to return the number of nodes int Graph::NumOfNodes(int level) {     // To keep track of current level     int curr_level = 0;      // For keeping track of visited     // nodes in DFS     vector<bool> visited(V, false);      // To store count of nodes at a     // given level     int NumberOfNodes = 0;      DFS(visited, 0, curr_level, level, NumberOfNodes);      return NumberOfNodes; }  // Driver code int main() {     int V = 8;      Graph g(8);     g.addEdge(0, 1);     g.addEdge(0, 4);     g.addEdge(0, 7);     g.addEdge(4, 6);     g.addEdge(4, 5);     g.addEdge(4, 2);     g.addEdge(7, 3);      int level = 2;      cout << g.NumOfNodes(level);      return 0; }

Java

import java.util.*;  // Class to represent a graph class Graph {      // No. of vertices     private int V;      // Pointer to an array containing     // adjacency lists     private List<Integer>[] adj;      // A function used by NumOfNodes     private void DFS(boolean[] visited, int src, int[] currLevel, int level, int[] numOfNodes) {         // Mark the current vertex as visited         visited[src] = true;          // If current level is equal         // to the given level, increment         // the no. of nodes         if (level == currLevel[0]) {             numOfNodes[0]++;         } else if (level < currLevel[0]) {             return;         } else {             // Recur for the vertices             // adjacent to the current vertex             for (int neighbor : adj[src]) {                 if (!visited[neighbor]) {                     currLevel[0]++;                     DFS(visited, neighbor, currLevel, level, numOfNodes);                 }             }         }         currLevel[0]--;     }      // Constructor     public Graph(int V) {         this.V = V;         adj = new ArrayList[V];         for (int i = 0; i < V; i++) {             adj[i] = new ArrayList<>();         }     }      // Function to add an edge to the graph     public void addEdge(int src, int des) {         adj[src].add(des);         adj[des].add(src);     }      // Function to return the number of nodes at a given level     public int numOfNodes(int level) {         // To keep track of the current level         int[] currLevel = { 0 };          // For keeping track of visited         // nodes in DFS         boolean[] visited = new boolean[V];          // To store count of nodes at a         // given level         int[] numOfNodes = { 0 };          DFS(visited, 0, currLevel, level, numOfNodes);          return numOfNodes[0];     } }  public class Main {      // Driver code     public static void main(String[] args) {         int V = 8;          Graph g = new Graph(V);         g.addEdge(0, 1);         g.addEdge(0, 4);         g.addEdge(0, 7);         g.addEdge(4, 6);         g.addEdge(4, 5);         g.addEdge(4, 2);         g.addEdge(7, 3);          int level = 2;          System.out.println(g.numOfNodes(level));     } }

Python3

# Python3 implementation of the approach   # Class to represent a graph class Graph:          def __init__(self, V):                  # No. of vertices         self.V = V                  # Pointer to an array containing         # adjacency lists         self.adj = [[] for i in range(self.V)]              def addEdge(self, src, des):                  self.adj[src].append(des)         self.adj[des].append(src)              # DFS function to keep track of     # number of nodes     def DFS(self, visited, src, curr_level,              level, NumberOfNodes):          # Mark the current vertex as visited         visited[src] = True           # If current level is equal         # to the given level, increment         # the no. of nodes         if (level == curr_level):             NumberOfNodes += 1              elif (level < curr_level):             return         else:                          # Recur for the vertices             # adjacent to the current vertex             for i in self.adj[src]:                          if (not visited[i]):                     curr_level += 1                     curr_level, NumberOfNodes = self.DFS(                         visited, i, curr_level,                          level, NumberOfNodes)              curr_level -= 1                  return curr_level, NumberOfNodes      # Function to return the number of nodes     def NumOfNodes(self, level):          # To keep track of current level         curr_level = 0           # For keeping track of visited         # nodes in DFS         visited = [False for i in range(self.V)]              # To store count of nodes at a         # given level         NumberOfNodes = 0           curr_level, NumberOfNodes = self.DFS(             visited, 0, curr_level,              level, NumberOfNodes)           return NumberOfNodes  # Driver code if __name__=='__main__':      V = 8       g = Graph(8)     g.addEdge(0, 1)     g.addEdge(0, 4)     g.addEdge(0, 7)     g.addEdge(4, 6)     g.addEdge(4, 5)     g.addEdge(4, 2)     g.addEdge(7, 3)       level = 2       print(g.NumOfNodes(level))   # This code is contributed by pratham76

using System; using System.Collections.Generic;  // Class to represent a graph class Graph {     // No. of vertices     int V;      // Pointer to an array containing adjacency lists     List<int>[] adj;      // A function used by NumOfNodes     void DFS(List<bool> visited, int src, ref int curr_level,              int level, ref int NumberOfNodes)     {         // Mark the current vertex as visited         visited[src] = true;          // If current level is equal to the given level, increment the no. of nodes         if (level == curr_level)         {             NumberOfNodes++;         }         else if (level < curr_level)         {             return;         }         else         {             List<int>.Enumerator i;              // Recur for the vertices adjacent to the current vertex             i = adj[src].GetEnumerator();             while (i.MoveNext())             {                 if (!visited[i.Current])                 {                     curr_level++;                     DFS(visited, i.Current, ref curr_level, level, ref NumberOfNodes);                 }             }         }         curr_level--;     }      public Graph(int V)     {         this.V = V;         adj = new List<int>[V];         for (int i = 0; i < V; ++i)         {             adj[i] = new List<int>();         }     }      public void addEdge(int src, int des)     {         adj[src].Add(des);         adj[des].Add(src);     }      public int NumOfNodes(int level)     {         // To keep track of current level         int curr_level = 0;          // For keeping track of visited nodes in DFS         List<bool> visited = new List<bool>(V);         for (int i = 0; i < V; ++i)         {             visited.Add(false);         }          // To store count of nodes at a given level         int NumberOfNodes = 0;          DFS(visited, 0, ref curr_level, level, ref NumberOfNodes);          return NumberOfNodes;     } }  class MainClass {     public static void Main()     {         int V = 8;          Graph g = new Graph(8);         g.addEdge(0, 1);         g.addEdge(0, 4);         g.addEdge(0, 7);         g.addEdge(4, 6);         g.addEdge(4, 5);         g.addEdge(4, 2);         g.addEdge(7, 3);          int level = 2;          Console.WriteLine(g.NumOfNodes(level));     } }  // This code is contributed by Prince Kumar

JavaScript

// JavaScript implementation of the approach  // Class to represent a graph class Graph { constructor(V) { // No. of vertices this.V = V;  // Pointer to an array containing adjacency lists this.adj = Array.from({ length: this.V }, () => []); }  addEdge(src, des) { this.adj[src].push(des); this.adj[des].push(src); }  // DFS function to keep track of number of nodes DFS(visited, src, curr_level, level, NumberOfNodes) {  // Mark the current vertex as visited visited[src] = true;   // If current level is equal to the given level, increment the no. of nodes if (level == curr_level) {   NumberOfNodes += 1; } else if (level < curr_level) {   return; } else {    // Recur for the vertices adjacent to the current vertex   for (const i of this.adj[src]) {     if (!visited[i]) {       curr_level += 1;       [curr_level, NumberOfNodes] = this.DFS(         visited,         i,         curr_level,         level,         NumberOfNodes       );     }   } } curr_level -= 1; return [curr_level, NumberOfNodes]; }  // Function to return the number of nodes NumOfNodes(level)  {  // To keep track of current level let curr_level = 0;   // For keeping track of visited nodes in DFS let visited = new Array(this.V).fill(false);  // To store count of nodes at a given level let NumberOfNodes = 0;  [curr_level, NumberOfNodes] = this.DFS(   visited,   0,   curr_level,   level,   NumberOfNodes );  return NumberOfNodes; } }  // Driver code const g = new Graph(8); g.addEdge(0, 1); g.addEdge(0, 4); g.addEdge(0, 7); g.addEdge(4, 6); g.addEdge(4, 5); g.addEdge(4, 2); g.addEdge(7, 3);  const level = 2; console.log(g.NumOfNodes(level));  // This code is contributed by lokeshpotta20.

Output

Complexity Analysis:

Time Complexity : O(N), where N is the total number of nodes in the graph.
Auxiliary Space: O(N)
