Choropleth Maps using Plotly in Python

Last Updated : 05 Nov, 2021

Plotly is a Python library that is very popular among data scientists to create interactive data visualizations. One of the visualizations available in Plotly is Choropleth Maps. Choropleth maps are used to plot maps with shaded or patterned areas which are proportional to a statistical variable. They are composed of colored polygons. They are used for representing spatial variations of a quantity.

To create them, we require two main types of inputs -

Geometric information -
- this can be a GeoJSON file (here each feature has an id or some identifying value in properties, or
- this can be built-in geometries of plotly - US states and world countries
A list of values with feature identifier as index

Syntax - plotly.express.choropleth((data_frame=None, lat=None, lon=None, locations=None, locationmode=None, geojson=None, color=None, scope=None, center=None, title=None, width=None, height=None)

Parameters:

lat = this value is used to position marks according to latitude on a map
long = this value is used to position marks according to longitude on a map
locations = this value is interpreted according to locationmode and mapped to longitude/latitude.
locationmode = one of ‘ISO-3’, ‘USA-states’, or ‘country names’. this determines the set of locations used to match entries in locations to regions on the map.
geojson = contains a Polygon feature collection, with IDs, which are references from locations
color = used to assign color to marks
scope = possible values - 'world', 'usa', 'europe', 'asia', 'africa', 'north america', or 'south america'`Default is `'world' unless projection is set to 'albers usa', which forces 'usa'
center = sets the center point of the map

Example:

Python3

# code for creating choropleth map of USA states # import plotly library import plotly  # import plotly.express module # this module is used to create entire figures at once import plotly.express as px  # create figure fig = px.choropleth(locationmode="USA-states", color=[1], scope="usa")  fig.show()

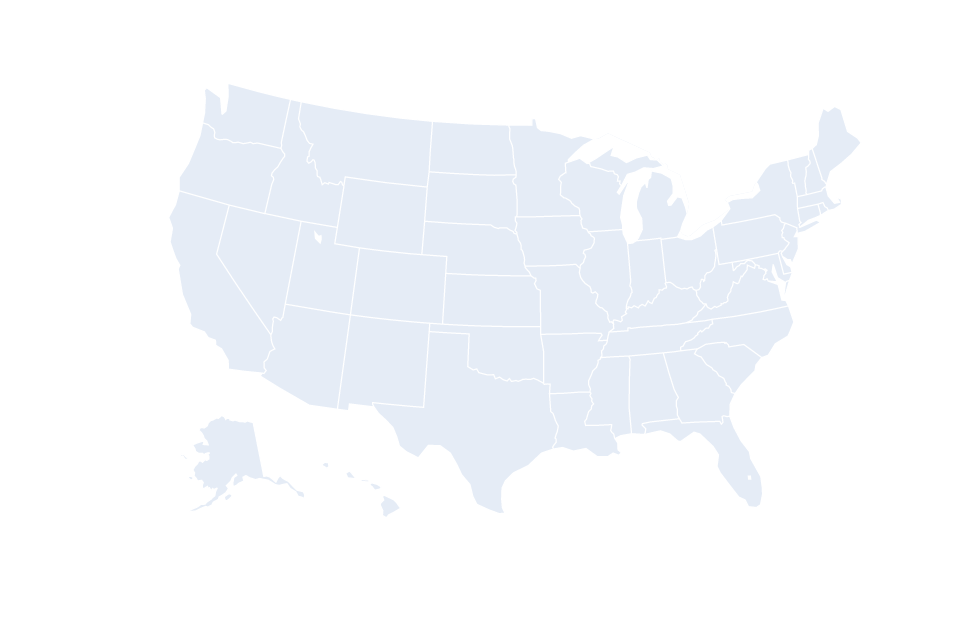

Output:

A choropleth map can be used to highlight or depict specific areas. The implementation of achieving such functionality is given below.

Example:

Python3

#code for representing states of USA #pass list of states in locations #list will have two-letter abbreviations of states fig = px.choropleth(locations=["CA","TX","NY"], locationmode="USA-states", color=[1,2,3], scope="usa")  fig.show()

Output:

In this example, we will take a dataset of US-states and create a choropleth map for US Agriculture Exports by USA in 2011.

Dataset Link - Click here

Example:

Python3

#import libraries import pandas as pd import plotly.express as px  #import data data = pd.read_csv('2011_us_ag_exports.csv')  # create choropleth map for the data # color will be the column to be color-coded # locations is the column with sppatial coordinates fig = px.choropleth(data, locations='code',                     locationmode="USA-states", color='total exports', scope="usa")  fig.show()

Output:
