AND gate is used to perform logical Multiplication of binary input. The Output state of the AND gate will be high(1) if both the input are high(1) ,else the output state will be low(0) if any of the input is low(0).
The Boolean Expression or logic for the AND gate is the logical multiplication of inputs denoted by a full stop or single dot as
A.B=X
The value of X will be True when both the inputs will be True.
How Does an AND GATE Works?
An AND GATE has multiple input lines (typically 2 or more) an produces an output. The key principle is that
If all the inputs are 1, Output will be 1
if either input is zero, Output will not be 1
Below is the interactive example to see how an AND gate behaves
Types of AND Gate
The AND gate is classified in three types based on the input it takes. These are the following types of AND gate
2-Input AND Gate
This is the simplest Form of AND gate. In this type of AND gate, it takes only 2 input values and an output value. There are total of 22=4 combinations of input possible.
X=A.B
The Logic Design and Truth Table are given below
3-Input AND Gate
The Three-input AND gate have three inputs. The AND gate can be cascaded together to form any number of individual inputs. There are total of 23=8 combinations of inputs possible. The Boolean expression of logic AND gate is defined as the binary operation dot(.)
X=A⋅B⋅C
MULTI Input AND Gate
In digital electronics just like 2-input and 3- input, we can also form n-input AND gate also. If there are n inputs, then (N/2)+1 AND gates will be used.

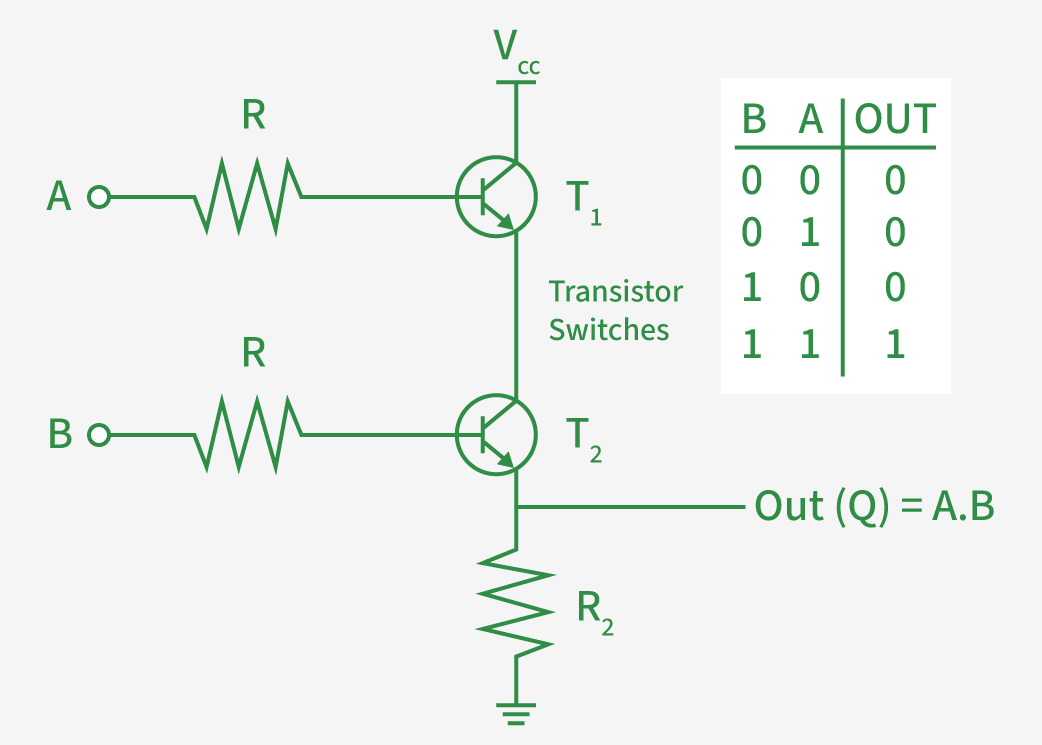

AND Gate in Terms of Transistor
An AND gate can be constructed using transistors, which are the key blocks of digital electronics. In this transistors acts as a small switches in a circuit, turning on or off based on the signal received from the input. In an AND gate, transistors is used to make sure that the output is high (1) when all input are high.
Working of AND Gate in Terms of Transistor
In a transistor based AND gate, two or more transistors are connected together in series. The key concept is that for the output to be high(1), all transistors must be in the "on" state, which means that each input must should supply the required signal to turn on its corresponding transistors.
- Two NPN transistors(T1 and T2) are connected together in series.
- The positive voltage supply (Vcc) is connected to the Collector of the the first transistor(T1).
- The collector of second transistor(T2) is connected to the emitter of of T1, and the emitter of Q2 is connected to ground.
- The input A and B are connected to the bases of T1 an T2.
- When both the inputs are high( A and B) are high(1), then both the transistors are turned on, allowing current to flow from Vcc to ground, which results in high(1) output stage
- If either input is low , then at least one transistors will remain off, cutting the current flow and resulting in a low output(0).
Applications of AND GATE
- It is used to design complex circuits such as adders, multipliers, etc.
- It is used in controlling the traffic light system. For example: Green light should be activated when all the roads are clear.
- It can be used in security system, where AND gate can be used to activate an alarm when a lots of sensor are operated.
- It can be used in error detection and error correction technique.
Advantages of AND GATE
- It performs logical conjunction operation. It means that, it produces an output '1' when all its input are '1'.
- It consumes low power as compared to any other complex logic gate.
- It is very easy to implement using CMOS, TTL and many more.
Disadvantages of AND GATE
- AND gate has limited output range. This means it will give high output when all the inputs are high else it will give low output.
- It introduces the propagation delay which might lead to synchronization issues.
Conclusion
In this article we have learned about that how it is used in digital circuits, like in processors and logic systems , where certain conditions must be met to produce to produce specific output. Apart from that AND gate checks whether all the inputs are true(1), and if true then it gives a true(1)as the output, making it essential for decision making in digital electronics.
